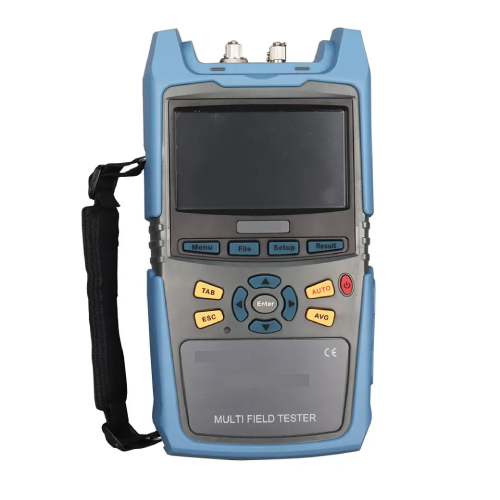

Advanced Fiber Optical Testing Meter with 8 Hour Battery Life – GAOTek

Description Overview GAOTek Fiber Optical Handheld Meter is a portable and user-friendly device used for testing and measuring various parameters in fiber optic networks. This handheld meter combines multiple functions into a single instrument, making it a versatile tool for field technicians, engineers, and network installers.   Features Simple, rapid, accurate, cost-effective 3-inch color TFT touch screen, more direct observation, and analysis, the operable in direct sunlight User-friendly operation interface, indoor and outdoor display mode Support multiple language input Shock, moisture, Suitable for field operation Replaceable lithium battery, Work more than 8 hours Standard VFL red light source   Technical Specifications Pulse Width   5 ns to 20 μs Measurement Time   User Defined Distance Accuracy   ±( 0.5 m 0.0001 % × Distance Sampling Resolution ) Attenuation Accuracy   0.005 dB Loss Threshold   0.001 dB Loss Resolution   0.001 dB Distance Resolution   0.03 m Sampling Quantity   128000 Linearity   0.05 dB/dB Data Storage 3000 pcs Operation environment (Temperature)   32 °F to 104 °F ( 0 °C to 40 °C ) Operating humidity   0 to 80 %RH Power   AC/DC Adapter (Input AC 90 to 240 V ±10 %, Output 12 V) Battery  Rechargeable Li-Ion Battery Inside (Charging Time< 4 hours, Working Time> 8 hours) LCD   4.3 Inch TFT Touch Screen Fiber Adapter   FC/PC, SC/PC Interface   USB(Principal and subordinate each), RJ45 Size   5.31 in x 9.84 in x 2.75 in (135 mm x 250 mm x 70 mm) Weight   2.20 lb. ( 1000 g)
