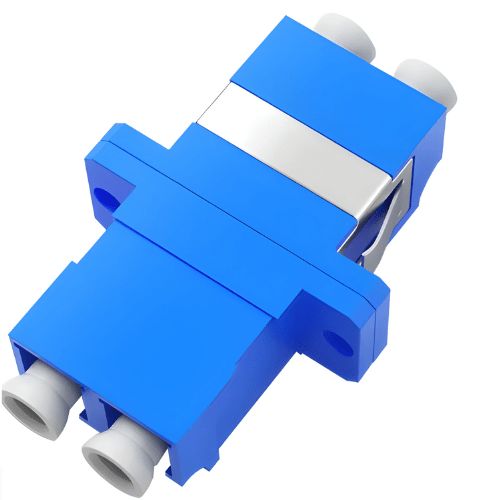

Description Features LC UPC Connector with clip for duplex cable 0.12 in. LC Port with high quality core. High precision of manufacturing. High insertions and removal times. The dust-proof cap is made of ceramic bushing. Technical Specifications Insertion Loss ≤ 0.3 dB Return Loss ≥ 55 dB Operating Wavelength 1310 nm to 1550 nm Ferrule Concentricity ≤ 1 um to ≤ 4 um Interchangeability ≤ 0.2 dB Salt Spray ≤ 0.2 dB Repeatability ≤ 0.1 dB (1,000 times) Humidity ≤ 0.2 dB (95% 75°C 168 hours) Durability ≥ 1,000 Times Vibration ≤ 0.1 dB (10-55Hz 1.5mm) Falling ≤ 0.2 dB (59.06 in high, 8 times) Operating Temp. -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) High Temperature ≤ 0.2 dB ( 185 F 168 hours) Low Temperature ≤ 0.2 dB (-40 F 168 hours) Temperature Cycle ≤ 0.2 dB (-40 ℉ to 185 ℉, 21 cycles 168 hours)
