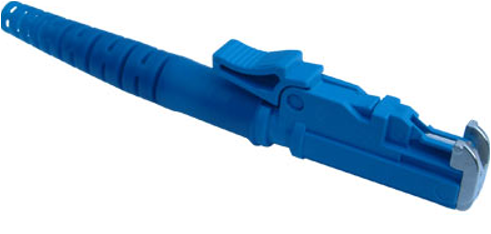

Description Overview Features Specifications Additional Information Overview GAOTek E2000 APC Fiber Optic Connector is a high performance 2-hole flange full ceramic ferrule with 900 µm cable and an integrated protective cap. It is designed for easy termination, saves time and provides trouble free operation. This E2000 connector and adapter have their own integrated protective cap which protects the ferrule from dust and rules out any laser light emissions. An integrated spring guarantees closing of the protective cap. It supports color and mechanical coding and is excellent for high packing density. Features Full ceramic ferrule Integrated protective cap protects ferrule from dust and rules out any laser light emissions Integrated spring for a guaranteed closing of the protective cap Supports color and mechanical coding Excellent for high packing density Special ferrule preform for short polishing time Adjustable in 60° steps. Technical Specifications Parameters Single mode Single mode APC 8° Multi-mode Insertion loss (IL) Type Max Type Max Type 0.12 dB < 0.4 dB 0.12 dB 0 dB 0.4 dB 0.09 dB < 0.3 dB 0.09 dB < 0.3 dB Fiber Type Multimode 0° PC Single mode 0° PC Single mode 8° APC Single mode 8° 0.1 dB Test Conditions Insertion Loss (IL) type 0.15 dB max 0.4 dB type 0.2 dB max 0.4 dB type 0.2 dB max 0.4 dB max 0.1 dB IEC 61300-3-4; λ = 1300 nm/ 1550 nm Return Loss (RL) type 40 dB min 50 dB min 70 dB min 85 dB IEC 61300-3-6; λ = 1300 nm/ 1550 nm Repeatability of IL max ±0.1 dB – Over service life Service life 1000 mate/ de-mate cycles Compliance IEC 61754-15, TIA 604-16 Technology Full ceramic ferrule and sleeve Tuning in 60° steps Mechanical Resistance 100 N tensile load Thermal Resistance -40 °F to 185 °F (-40 °C to 85 °C), stock temperature range Flammability UL 94-V0 Durability Min. 1000 mating cycles Color of Housing Single mode blue SM (APC 8°) green Multimode beige Operating Temperature -40 °F ~ 185 °F (-40 ℃ ~ 85 ℃) Storage Temperature -40 °F ~ 194 °F (-40 ℃ ~ 90 ℃) Additional Information Applications Telecom network LAN, MAN network CATV, sensor systems, measuring technique Utilities, railways Color Keying The E2000 APC Fiber Optic Connector system permits the user to specify the color of the thumb-latch and the mating adapter frame so that different line types, uses, destinations and points of origin, etc. can be readily identified. The thumb-latch and frame are available in eight distinct colors: Blue (RAL 5015) Beige (White) (RAL 1013) Black (RAL 9005) Red (RAL 3020) Orange (RAL 2003) Yellow (RAL 1016) Green (RAL 6018) Violet (RAL 4008) Dimensions Drawing
