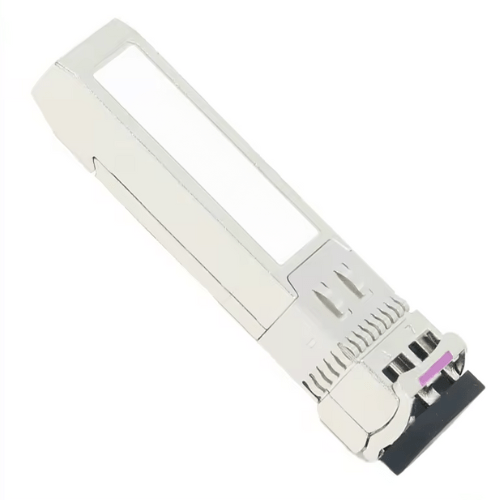

Description Overview GAOTek Duplex LC Connector Fiber Optical Transceiver offers a 10Gbps data rate with a reach of 80km using dense wavelength division multiplexing (DWDM) technology. Its advantages include long-distance transmission, high bandwidth capacity, and compatibility with existing DWDM infrastructure. The module operates on single-mode fiber, allowing for reliable and high-speed data transfer over extended distances. It supports digital diagnostic monitoring for performance evaluation. Its compact form factor ensures easy deployment and replacement. Is commonly applied in long-distance telecommunications, metropolitan networks, and interconnecting data centers across regions, where it provides a cost-effective solution to extend network reach without the need for expensive infrastructure upgrades. Technical Specifications Alcatel Lucent Compatible SFP 10G ZR DWDM 49.71 mi Data Rate 10 Gbps Form Factor SFP Distance 49.71 mi (80 Km) MTBF 1,000,000 Hours TX Power 1 dBm to -5 dBm Power Budget 23 dB Optical Components EML-DWDM Sensitivity < -23 dBm Connector Duplex LC Receiver Overload -7 dBm Power Consumption < 1.6 W Extinction Ratio > 8.2 dB Operating Temperature 32 °F to 158 °F (0 °C to 70 °C)
