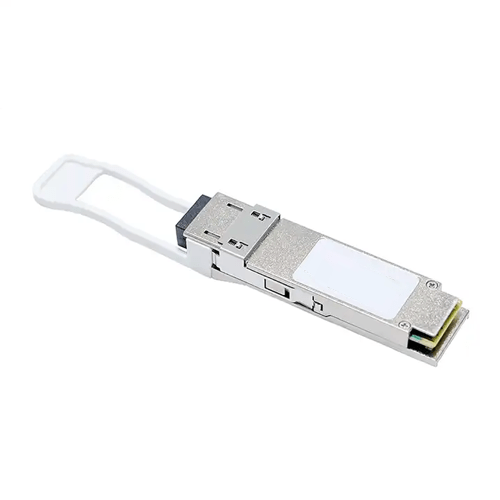

Description Features 4 lanes MUX, DEMUX design Integrated LAN WDM TOSA, ROSA Up to 11.2 Gbps per channel bandwidth Aggregate bandwidth of > 40 Gbps Duplex LC connector Compliant with 40 G Ethernet IEEE 802.3 ba and 40 GBASE-ZR4 QSFP MSA compliant APD photo-detector Up to 80 km (49.71 mil) transmission Compliant with QDR or DDR InfiniBand data rates Single 3.3 V power supply operating Built-in digital diagnostic functions Temperature range 0 °C to 70 °C (32 °F to 158 °F) RoHS Compliant Part Technical Specifications Data Rate 40 G Wavelength 1270 nm, 1290 nm, 1310 nm, 1330 nm, 850 nm Distance 328 ft to 6562 ft (100 m to 2 km) Source CWDM DFB, PIN VCSEL, PIN Output Power (dBm) -7 dBm to 3 dBm -6 dBm to -1 dBm -2dBm to 5 dBm 2 dBm to 5 dBm 3 dBm to 6 dBm -7.5 dBm to 1dBm -4 dBm to 5 dBm Sensitivity (dBm) <-11 dBm <-11.5 dBm <-12.6 dBm <-14 dBm <-21 dBm <-26 dBm <-28 dBm <-7 dBm Connector LC, MPO Temperature 0 °C to 70 °C (32 °F to 158 °F)
