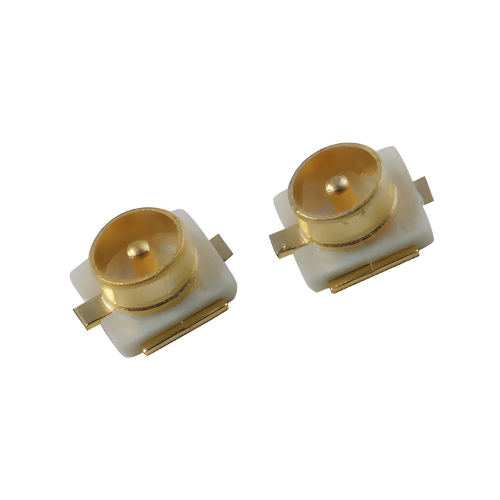

Description Features Easy Snap-On or snap-off mating Ultra-low profile Small footprint 100% compatible with Hirose U. FL series Technical Specifications Frequency Range 0 GHz to 6 GHz Impedance 50 Ω Insulation Resistance 500 MΩ Min Dielectric Withstanding Voltage 200V AC per 1 Min Inner Contact Resistance 20 mΩ Max Outer Contact Resistance 10 mΩ Max Voltage Standing wave Ratio (VSWR) 1.3 Max. (0 GHz to 3GHz 1.2 Max). Mechanical Durability 100 Cycles Relative Humidity 95% R.H.Max Operating Temperature -40 °F to 185 °F (-40 ℃ to 85 ℃) Dimension 0.122 in × 0.118 in × 0.049 in (3.1 mm × 3 mm × 1.25 mm)
