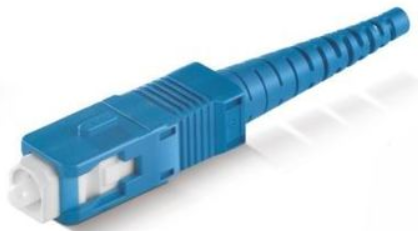

Description Overview Features Specifications Additional Information Overview GAOTek Ceramic Ferrule Fiber Optic Connector is a simplex SC plastic connector with 0.079 in (2.0 mm) cable and is used in variety of network applications. It provides a threaded coupling nut, internal cavity and epoxy injection tube. The connectors are secured using a threaded coupling nut which provides a significant increase in the pull-out performance. The presence of an internal cavity and epoxy injection tube virtually eliminates the possibility of improper epoxy applications and provides higher manufacturing yields. The connector system has a reliable and consistent performance and is available in tunable or non-tunable PC versions for flexibility in specific performance requirements. Features Threaded coupling nut provides significant increase in pull-out performance Features internal cavity and epoxy injection tube Low insertion loss High return loss High interface performance Latched push-pull integrated Differential color coded UL standard accessories, comply with RoHS Technical Specifications Parameter Single mode Multi-mode Insertion Loss PC<0.3 dB APC< 0.2 dB PC <0.3 dB Return Loss PC> 45 dB APC>60 dB PC >25 dB Insert-pull Test 1000 times <0.3 dB Ferrule Material Ceramic Cable Length 0.079 in (2.0 mm) Housing Material Plastic Ceramic Ferrule Specifications 125.5 µm concentricity deviations: <1 µm 127 µm concentricity deviations: < 3 µm Suitable Fiber PC/APC(9 / 125 µm) PC (50 /125 µm, 62.5 /125 µm) Operating Temperature -40 °F ~ 167 °F (-40 ℃ ~ 75 ℃) Additional Information Applications Telecom network Ethernet network Optical laser Optical communication equipment CATV network. Ordering Information Housing Color Blue, Green, Black, Beige Boot Color Blue, Black, Green Boot Type Mini 0.035 in (0.9 mm), 0.035 in (0.9 mm); 0.079 in (2.0 mm); 0.12 in (3.0 mm) Ferrule Type SM, MM Connector Type Simplex, Duplex Drawing Design
