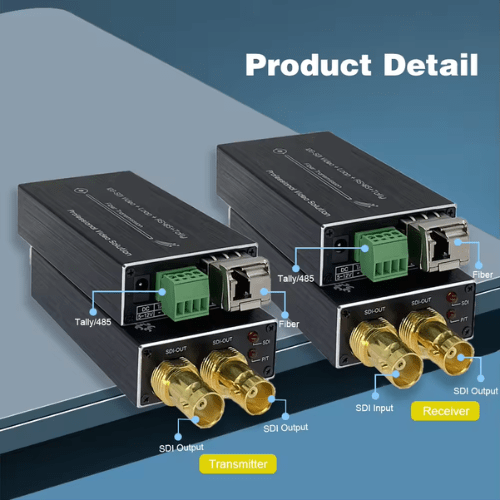

Description Overview GAOTek Fiber Converter supports 1 Ch 12 G Video, 1 Ch Tally signal and 1 Ch. Backward RS 485 transmitted via fiber optical cable and monitored the signal locally over a 12 G loop output. Features Each SDI channel embeds 8-channel audio. Automatic cable equalization for signal integrity assurance. Supports various SDI standards – 12G, 6G, 3G, HD, SD. Integrated Reclocker locks to SMPTE rates for precision. Directly compatible with 12G, 6G, 3G SDI camera systems. Long transmission capability, ranging from 10 km to 80 km. Supports Tally and Backward RS485 for versatile connectivity. Hot swapping and hot plugging features for flexibility. Full digital non-compression for broadcast-level transmission. Super optic dynamic range, adjustment-free technology. Utilizes fiber optic WDM/CWDM/DWDM techniques. Supports resolutions like 4K*2K, 1080P, 1080I, 720P. Technical Specifications Formats Supports ST-2082-1 12 G, ST-2081-1 6 G, ST-424 3 G, ST-292 HD And ST-259 SD Compatible Compatible with DVB-ASI and AES 10 MADI Input 1 x 12 G-SDI on BNC Output 1 x LC optical fiber 1 x 12 G-SDI loop-out on BNC Input cable specification ≤ 70 m at 12 G SDI Belden 1694 A Output cable specification ≤ 70 m at12 G SDI Belden 1694 A Data type Backward Tally Data type Backward RS 485 Optical transmission bandwidth 270 MHz to 12 GHz Power 5 V DC to 15 V DC Power Consumption 2 W (Max) Storage Temperature -40 °F to 176 °F (-40 ℃ to 80 ℃) Operating Temperature -40 °F to 185 °F (-40 ℃ to 85 ℃) Dimensions 3.15 in x 1.57 in x 0.79 in (80 mm x 40 mm x 20 mm)
