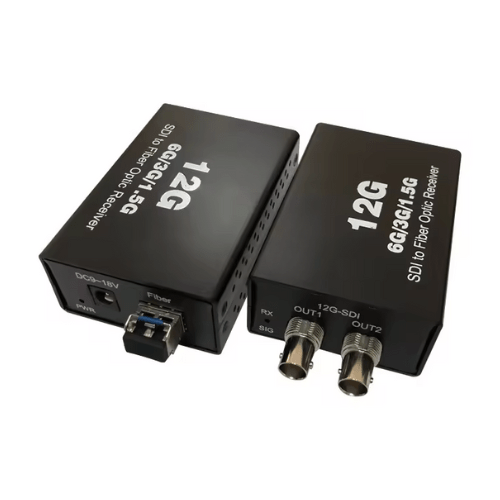

Description Overview GAOTek 12G SDI Fiber Converter is equipped with a multi-rate cable equalizer at the electrical signal input end, with 1 SDI loop output. The receiver has a signal jitter reduction circuit, which can handle the distorted signal well and output 2 SDI signals. Support SMPTE178 standard and pass SDI pathology code test. The equipment has a wide range of voltage, single-mode (multi-mode) optional, SFP optical module, LC optical port, and the transmission distance can reach 12.43 mi to 37.28 mi. This series of 4KSDI high-definition video optical transceivers have perfect signal accuracy, super stability and reliability. They are the best choice for TV stations, CMMB, IPTV, mobile TV, mobile TV and other new media in news gathering and live broadcast signal transmission. High-definition video optical fiber transmission equipment. Features Automatic recognition of various SDI signal inputs. Compliance with SMPTE and DVB-ASI standards. Adherence to SMPTE and DVB-ASI standards. Automatic adaptation to various SDI data rates. Signal input features cable equalization, output with drive function. Sender and receiver equipped with clock recovery functions. LED lights for easy equipment status monitoring. Lead-free PCB with stable, reliable multi-layer design. Quality components from renowned international manufacturers. Rack-mounted with dual-switch power supply, versatile installation options. Technical Specifications Video Interface BNC, SDI Interface Input Single Channel Supported Resolution 4 K at 60 HZ, Backward compatible1080 P, 1080 I, 720 P Resolution Range 3840 x 2160 at 60 Hz Transmission Rate Highest 11.88 Gbps Optical Transmission Bandwidth 270 MHz to 12 GHz Power 5 to 18 VDC and 2 A Wide Voltage Supply Power Consumption < 10 W Operating Temperature -4 °F to 122 °F (-20 ℃ to 50 ℃) Dimensions 4.72 in x 2.36 in x 1.77 in (120 mm x 60 mm x 45 mm)
