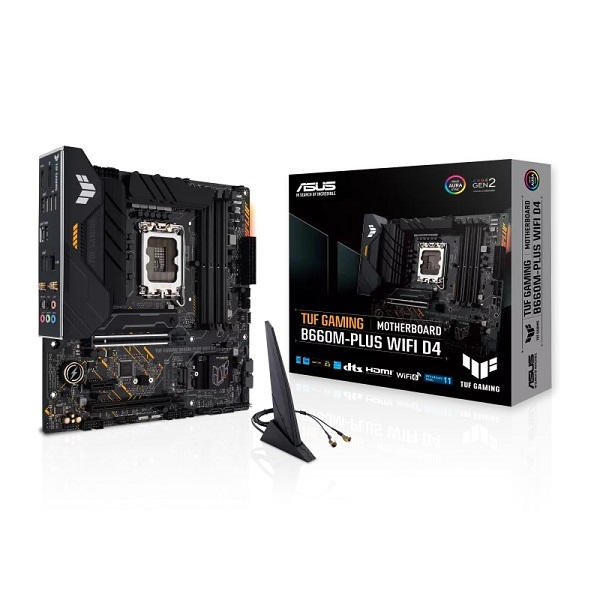

Asus Tuf Gaming B660M-Plus WiFi D4 Gaming Motherboard

Description CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsIntel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel B660 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort**1 x HDMI® port****Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processors’ resolution. Expansion Slots Intel 12th Gen Processors1 x PCIe 5.0 x16 slotIntel B660 Chipset*1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot* Supports Intel Optane Memory H Series on PCH-attached PCIe slot. Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s portsTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel 12th Gen processors support PCIe 4.0 x4 mode.Intel B660 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. Ethernet TUF LANGuard1 x Realtek 2.5Gb Ethernet TUF LANGuard   Wireless & Bluetooth Intel Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2**Bluetooth v5.2 function will be ready in Windows 11 or later. USB Rear USB : Total 8 portsRear USB (Total 8 ports)1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB : Total 7 portsFront USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports   Audio Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback – Audio Features- Audio Shielding- Power pre-regulator reduces power input noise to ensure consistent performance- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector1 x 8-pin 12V Power connector1 x 4-pin 12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt header   Special Features ASUS TUF PROTECTION – DIGI VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2 – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode   BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card1 x User guide   Operating System Windows 11, Windows 10 64-bit Form Factor microATX 24.4cm x 24.4cm
