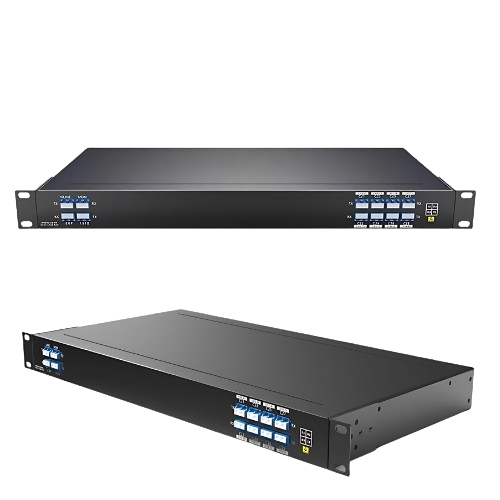

Drawer Type C Band Range Terminal Distribution Box 8 Channels -GAOTek
$52.34
$71.71
Description Features Wavelength range: C21 to C28 (1560.61nm to 1554.94nm) ITU-T G.694.1 100GHZ grid compliant Low insertion loss: Wavelength ports <2.4dB, 1310nm port <0.8dB 1310nm port supports multiple protocols Monitor Port for network link monitoring or power monitoring Expansion Port for future bandwidth increasing Technical Specifications Wavelength 8 channels C21-C28(or other waves) Channel Spacing 100GHz (0.8nm) Channel Passband ±0.11nm Technology TFF (Thin Film Filter) Insertion Loss ≤ 2.4 dB Link Loss 110nm Port Pass ≤ 3.2 dB Band Width Center Wavelength 1260 nm to 1360 nm Accuracy ±0.05 nm Insertion Loss @1310 port ≤ 0.8 dB Insertion Loss @ 1% Mon ≤ 26 dB Return Loss ≥ 45 dB Directivity ≥ 45 dB Polarization Mode Dispersion ≤ 0.1 ps Polarization Dependent Loss ≤ 0.3 dB Channel Isolation Adjacent ≥30 dB Non-adjacent ≥ 45 dB Temperature Operating -104°F (–40 °C) to 185°F (85 °C) Dimensions (H x W x D) 1.73 in ×17.32 in 9.05 in (4.4 cm×44.0 cm ×23.0 cm) Net Weight 3.30 lb (1.5 Kg)
