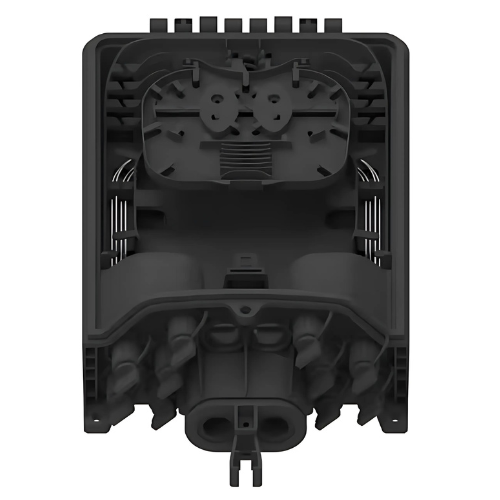

8 Core LAN Fiber Optic With IP68 Wetproof And Dustproof Box – GAOTek
$64.74
$114.59
Description Features Total enclosed structure. Material: PC plus ABS, wet-proof, waterproof, dust-proof, anti-aging, protection level up to Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation. Box can be installed by wall-mounted or poled-mounted, suitable for both indoor and outdoor use. Technical Specifications Max Capacity 48 Material PC ABS Color Black IP IP68 Insertion Loss ≤ 0.15 dB UPC Return Loss ≥ 50 dB Max Capacity Of Splicing 48 FAT Material PC ABS Into The Largest Cable Diameter 0.31 in (0.8 cm) to 0.55in (1.4 cm) Temperature -40 ℃ (-104 °F) to 85℃ (185 °F) Maximum Size Of Branch Hole 0.62 in (1.6 cm) Installation Size 2.00 in × 6.73 in × 6.73 in (5.1 cm × 17.1 cm × 17.1 cm) Dimensions 13.14 in × 8.26 in × 4.40 in (33.4 cm × 21.0 cm × 112.2 cm)
Fiber Distribution Terminal
