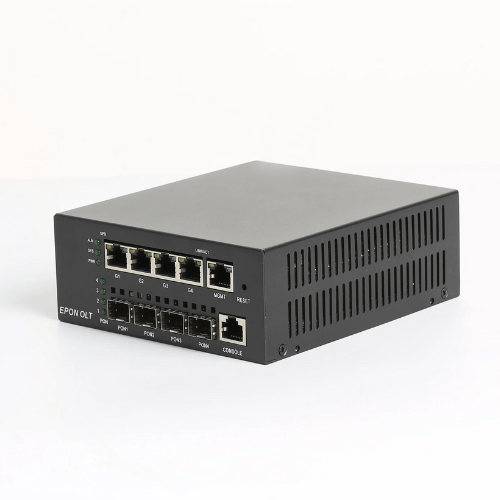

Description Overview GAOTek 4pon ports Gigabit is mini standalone type 4PON OLT, supplies 4 SFP PON ports,4 Gigabit RJ45 uplink ports. It works with ONU and ODN, to establish a passive optic network. supports full line speed L2 or L3 transition capacity. Each PON system supports a maximum of 256 Logical Link Identifiers (LLID) and 1.25 Gbps bandwidth independently. It adapts to counties, towns and villages fiber network access. It is also adapted to FTTH or FTTB or FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access. Technical Specifications Wavelength 1310（RX） or 1490（TX） Optical Power 2.5 to 7dBm Receiving Sensitivity -27 dBm Maximum Distance 12.43 mi (20 km) Maximum Optic Ratio 1:64 Capacity 4 PON System, 256 ONUs MAC 16 K Use FTTH Solutions Network TCP, Ip Operating Wavelength 1310 (RX) or 1490 (TX) Optical Power 2.5 to 7dBm Pon Ports 4 sfp pon ports Receiving Sensitivity -30 dBm Max Distance 20 km Capacity 4 PON, maximum 256 pcs ONU MAC 8 k Uplink Port 4 1000 M RJ 45 uplink ports PON Port 4 SFP PON ports Compatibility Other brands EPON or Xpon onu ont Network TCP, Ip Operating Wavelength 1310 (RX) or 1490 (TX) Optical Power 2.5 to 7dBm Pon Ports 4 sfp pon ports
