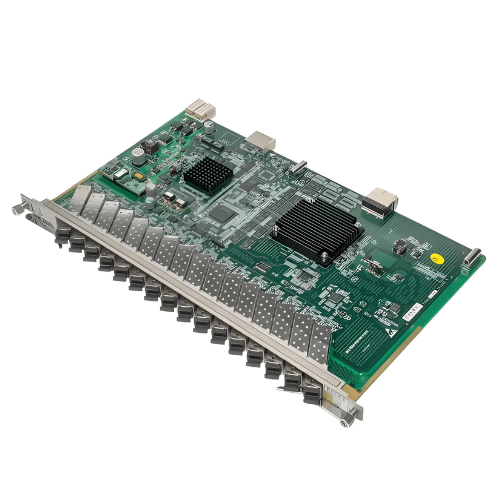

Description Overview GAOTek 16 pon ports OLT Control module to complete the single board software loading, operation control, management and other functions. Exchange module to achieve the convergence of 16 GPON port signals. Interface. Module to realize the mutual conversion between GPON optical signal and Ethernet message. The power supply module provides a working power supply for each function module in a single board. The clock module provides a working clock for each function module in a single board. Features GPON supports power-saving management defined in G.987.3 Each port features 1024 T-CONTs and 4096 GEM ports High TM Performance H-QOS, 1024 queues, 356 schedulers Supports color-sensitive RED and WRED discard algorithms Clock or Time Function Receives 1 PPS plus TOD signals Sends signals to ONU via the PON channel Low Power Consumption New GPON MAC chip Reduces power consumption by 30% on average Technical Specifications Power Consumption GTGH 5 W static, 65 W maximum, 55 W typical, GTGO 5 W static, 35 W maximum, 30 W typical Form SFP or ESFP Rate 2.5 Gb per second Optical Connector Type SC or UPC Fiber Type Single mode Maximum Light Splitting Ratio 1:128 Dimensions 15.57 in x 0.89 in x 8.86 in (395.5 mm x 22.5 mm x 225 mm) Weight GTGH 2.21 lb ( 1.0 kg), GTGO 2.04 lb ( 0.93 kg)
