GAOTek Ethernet Network Splitter

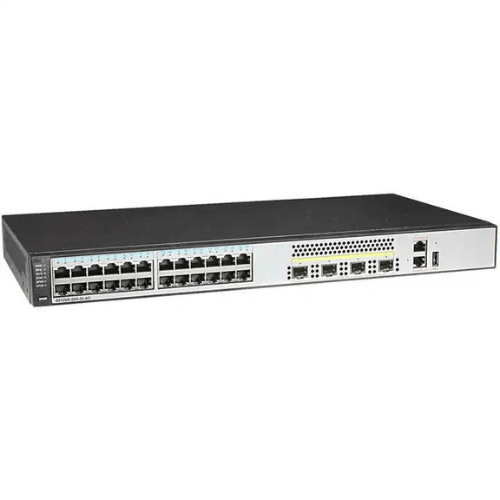

Description Overview GAOTek ethernet network splitter switches that provide resilient, high-density Layer 3 switching for data centers. Features include multiple-terminals, HD video surveillance, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream ports and IP v6 forwarding enable use as aggregation switches in enterprise campus networks.Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total Cost of Ownership (TCO).   Features Flexible Port Expansion Ultra-Large Stack Bandwidth SVF for Ultra-Simplified Network O & M One console port One ETH management port Four 10 GE SFP ports   Technical Specification Switching Capacity 336 Gbit/s Forwarding Performance 96 Mpps Fixed Ports 24 x 1,000 ports MAC Address Table IEEE 802.1 d compliance and 16 k MAC address entries VLAN Features 4094 VLANs and Guest VLAN IP Routing Static route and RIP v1 or RIP v2 SVF Plug-and-play SVF client Interoperability VLAN-based Spanning Tree (VBST) (interoperating with PVST ) and Link-type Negotiation Protocol (LNP)
