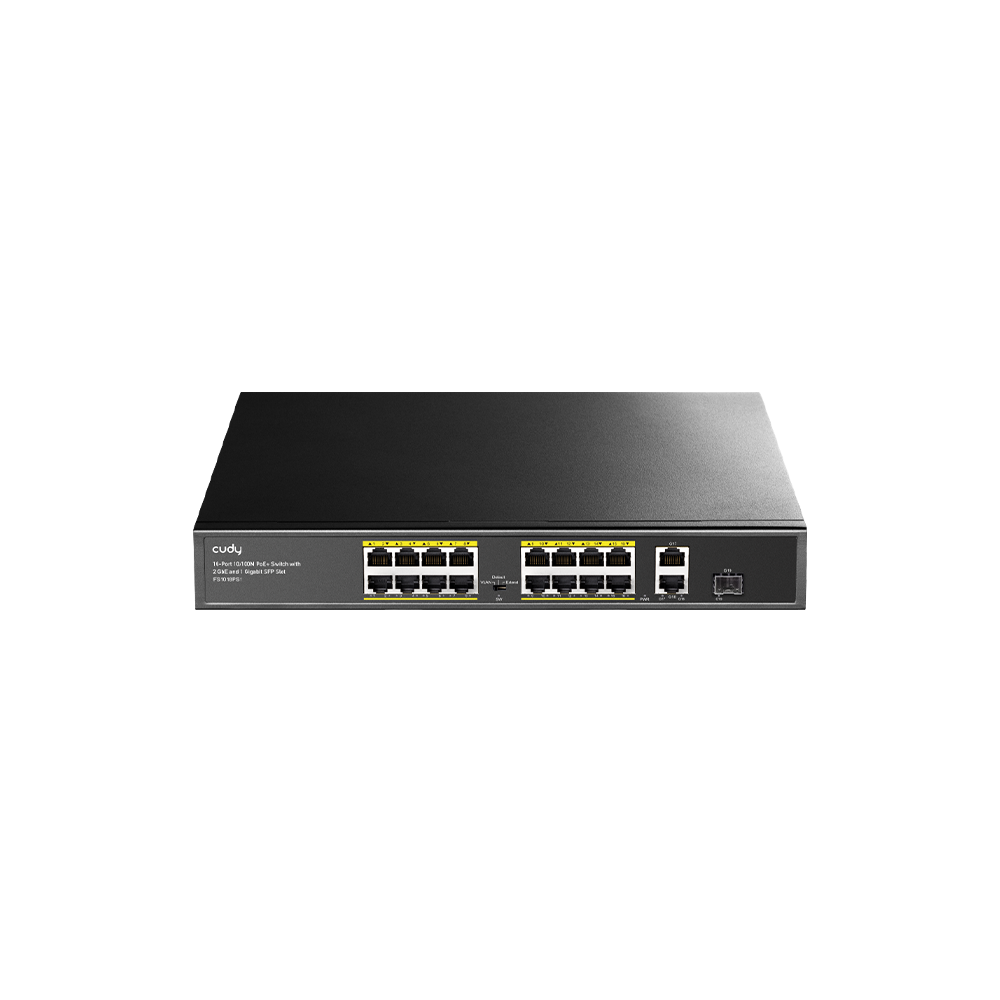

16-Port 10/100M PoE Switch with 1Gigabit Uplink and 1 Gigabit Combo SFP Port 200W (FS1018PS1)

Mode FS1018PS1 Power Power Supply Built-in power supply Voltage Range AC100~240V Consumption 190W for 16 PoE Ethernet Speed 1~16 Port: 10/100/Mbps G17~G18 Port:10/100/1000Mbps G19 Port: SFP 1.25bps Transmission Distance 100Meter(328ft)for RJ-45 The distance is determined by the optical module The optical module is optional Network Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at Switching Capacity 7.2G Transfer Rate 14880 pps for 10Mbps 148800 pps for 100Mbps 1488000 pps for 1000Mbps MAC Adsress 4K MAC sddress table Link/ACT On(Green) The port is connecting Blinks The port is receiving or transmitting data. Off The port is notl inked successfully with the device POE On(Oranfe) PD is connected Off No PD is connected or power forwarding fails PoE Pin Assignmnet V (RJ45 Pin 1, 2) – (RJ45 Pin 3,6) Environment Working Temperature  0~40°C Storage Temperature -40~70°C Humidity Non Condesing 0~85% Mechanical Dimension L*W*H 280*180*44mm Color Gray
