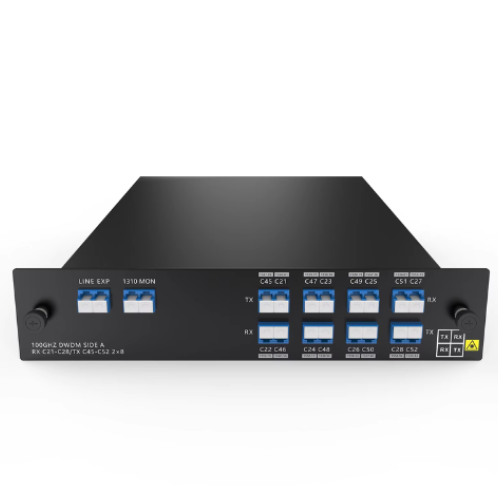

DWDM With 1310nm BiDi Support And Expansion Capability-GAOTek

Description Features 1310nm port can support 10G bidi 1270/1330nm. Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic. Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.   Technical Specifications Wavelength OADM C21-C24/C45-C48 Channel Passband ±0.11nm Insertion Loss ≤ 2.4dB(waves to west or east) Return Loss ≥ 45dB Polarization Mode Dispersion ≤ 0.1ps Channel Isolation Adjacent ≥30dB Non-adjacent ≥ 45dB Net Weight FMUC Plug-in Module: 0.5KG 2slot 1U Rack: 3.5KG Channel Spacing 100GHz (0.8nm) Technology TFF (Thin Film Filter) Link Loss ≤ 3.5dB (west to east) Directivity ≥ 45dB Polarization Dependent Loss ≤ 0.3dB Temperature Operating –40 °F to 185 °F (-40 °C to 85 °C) Storage –40 °F to 185 °F (-40 °C to 85 °C) Dimensions FMUC Plug-in Module: 8.35 in x 10.04 in x 1.73 in (212.09 cm x 255.02 cm x 43.94 cm)1U Rack: 18.98 in x 10.28 in x 1.73 in (482.09 cm x 261.11 cm x 43.94 cm)
