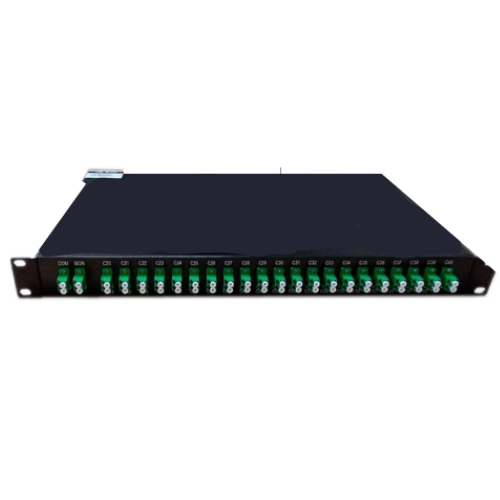

Demux Module 1270-1610nm With ≤1.6 dB Insertion Loss – GAOTek

Description Technical Specifications Channel Wavelength(nm) 1270 nm to 1610 nm Center Wavelength Accuracy(nm) ±0.5 nm Channel Spacing(nm) 20 nm Channel [email protected] Bandwidth (nm) >13 nm Insertion Loss(dB) ≤1.6 dB Channel Uniformity(dB) ≤0.6 dB Channel Ripple(dB) 0.3 dB Insertion Loss Temperature Sensitivity(dB/ºC) <0.005 dB Wavelength Temperature Shifting(nm/ºC) <0.002 nm Polarization Dependent Loss(dB) <0.1 dB Polarization Mode Dispersion (PS) <0.1 ps Directivity(dB) >50 dB Return Loss(dB) >45 dB Maximum Power Handling(mw) 500 mw Operating Temperature(ºC) 23°F 158°F (-5°C 70°C) Storage Temperature(ºC) -40°F 185°F (-40°C 85°C)
