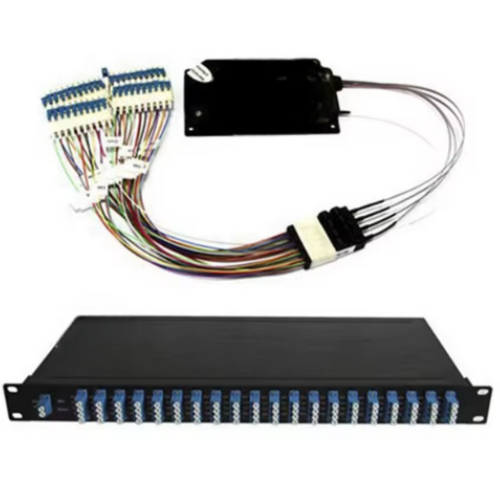

Athermal MUX/DEMUX With Telcordia Compliant And WDM networks – GAOTek
$37.9
$65.57
Description Features MUX/DEMUX Functionality Compact Package Multi-channel Number Telcordia GR-1209/1221 compliant Athermal Design and Electrical Power are not required. Low Insertion Loss, Low PDL, High Channel Isolation Technical Specifications Use WDM Network Number Of Channels 96 Configuration Mux, Demux Fiber Length 1,2m or Specify In/Out Connector LC or UPC 1st Channel C21 C22 C23 C59 C60 C61 Channel Passband ±6.25 GHz Wavelength Stability ±0.05nm -1dB Channel Bandwidth 0.20 nm -3dB Channel Bandwidth 0.28 nm Optical Insertion Loss at ITU grid 12.0 dB Adjacent Channel Isolation 25 dB Non-Adjacent, Channel Isolation 30 dB Total Crosstalk 20 dB Directivity (Mux Only) 40 dB Optical Return loss 45 dB Fiber Type 250 um, 0.035 in (0.08cm), 0.0787 in (0.2 cm) or 1181 in (0.3 cm)
