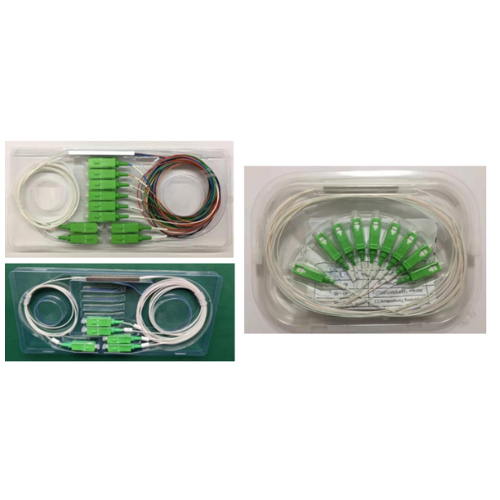

1xN and 2xN Fiber Splitter with Low Loss Performance – GAOTek

Description Features Low Insertion loss  Low PDL  Compact Design  Good channel-to-channel uniformity  Wide Operating Wavelength: From 1260nm to 1650nm  Wide Operating Temperature: From -40 C to 85 C (–40 °F to 185 °F) High Reliability and Stability    Product Order details The length of optical fiber can be customized according to the actual requirement.   Connector Type: SC/APC、FC/APC、LC/APC、FC/UPC、LC/UPC、ST/UPC  Fiber diameter：0.9mm/2.0mm/3.0mm  GAOTek-SPLT-111 Device: Mini/ABS Box  GAOTek-SPLT-111 series：1/2*2/3/4/6/8/12/16/32/64/128    Technical Specifications Item  Specification (Converted)  Insertion Loss  IEC 61300-3-4  Return Loss  IEC 61300-3-6  UPC Radius of Curvature  0.394–0.984 in (10–25 mm)  APC Radius of Curvature  0.197–0.709 in (5–18 mm)  Apex Offset  0–60 µm   Optical Fiber Depression  50 to –100 nm  APC Angle  Degrees: 8 ± 0.5°  Durability  500 times < 0.2 dB  3D (APC)  ≥70%  3D (UPC)  ≥80%
