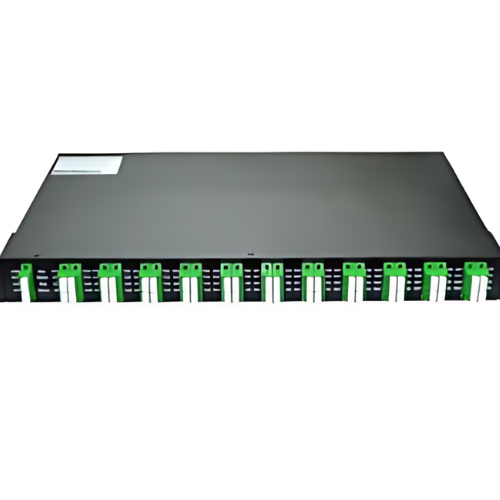

100 GHz DWDM Mux Demux With 49.71 mi Distance And ITU Grid – GAOTek
$67.49
$90.44
Description Features Up to 48CH Rack Chassis100G AWG (48CH 100G DWDM Mux Demux) Insertion Loss Ripple: 1.0db Optical Return loss: 40db Band: C-Band, L-Band, C L-Band, Customize is optional Number of Channels: 16CH, 32CH, 40CH, 48CH, Special is optional Spacing: 50G, 100G, 200G, Special is optional Filter Shape: Gaussian, Broad Gaussian, Flat Top is optional Package: Module, Rack, Special is optional Fiber Length: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, Specify is optional Ln, Out Connector: FC or APC or FC or PC or SC APC or SC or PC or LC or APC or LC or PC or ST or UPC or Specify is optional Technical Specifications The Channel Spacing 0.8 Nm Spacing 100 GHz Number Of Channel 48 CH Protocol Transparent 10 Mbps to 100 Gbps Transmission Distance Up to 49.71 mi (80 Km) Fiber Length 1 m or Customized Operating Wavelength Itu 100 GHz Grid Wavelength C21-C60 Specification 4.72 in x 2.95 in x 0.47 in (11.99 cm x 7.49 cm x 1.19 cm) Total Crosstalk 22 dB Return Loss 40 dB Maximum Continuous Optical Power 250 mw
