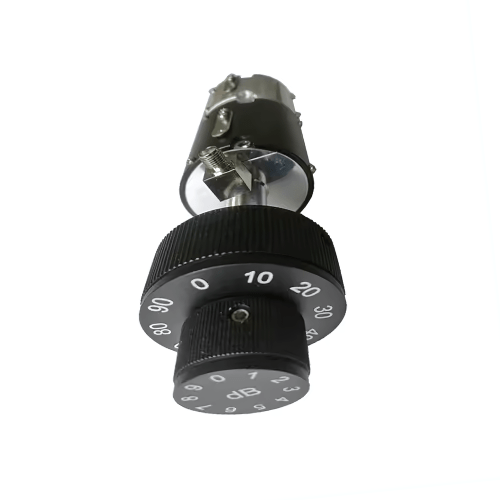

Description Overview GAOTek Power attenuator is a kind of energy loss of the RF / microwave components, devices with resistive material inside. Addition to the usual fixed resistive attenuator, there are also electronically controlled attenuator to adjust fast. Attenuators are widely used in a variety of occasions that the power level needed to be adjusted. Features Wide working frequency range Low standing wave High attenuation accuracy High indicator stability Technical Specifications Attenuation Value 0 dB to 100 dB Impedance 50 Ohm Frequency DC to 4 GHz VSWR 1.70:1 Max Attenuation Accuracy ±0.6dB(≤10dB) ±0.9dB(<60dB) ±1.6dB(<70dB) ±5dB(≥70dB) Attenuator Steps 1 dB
