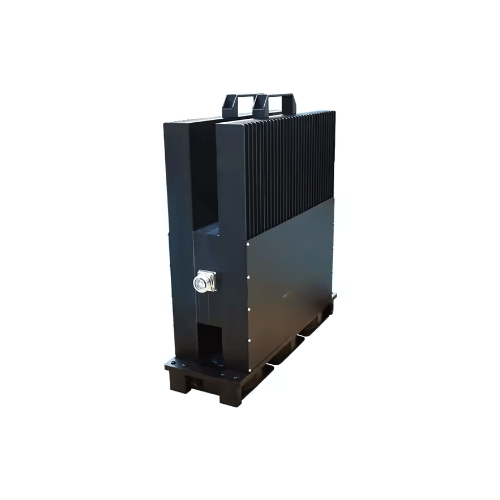

Description Overview GAOTek coaxial fixed attenuator and dummy load can quantitatively absorb the energy in the transmission line, extend the power range, control the power level, and can be equipped with a small power meter, comprehensive tester or spectrum analyzer can accurately measure the power or spectrum of various RF microwave transmitters. Features Wide frequency range Low VSWR Flat attenuation value Strong anti-pulse Anti-burnout Technical Specifications Frequency Range DC-3GHz Forward Power 2000 W Attenuation Value 10 dB to 60 dB Attenuation Tolerance ±2.0 dB; ±2.5 dB VSWR Max 1.35 Connector Type 7/16-M to 7/16-F; 7/16-M to N-F; 7/16-F to N-M Impedance 50 Ω Dimension LxWxH 23.622 in × 17.559 in × 6.535 in (600 mm × 446 mm × 166 mm)
