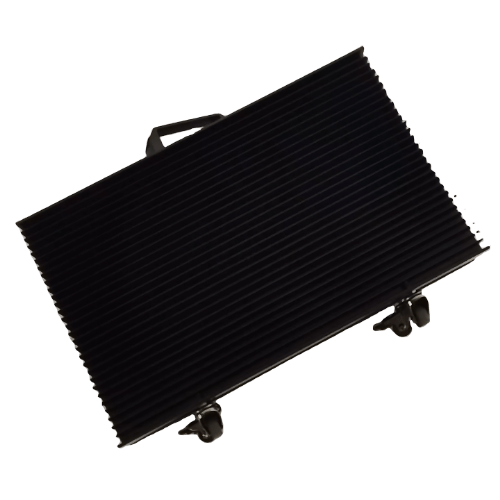

Description Features Good temperature behavior High aseismatic capability. Low Insertion Loss High power handling Technical Specifications Product Name Coaxial Fixed Attenuator Model Number ATTEN-1000W Frequency Range DC-4.0 GHz Dimension 25.59 in × 6.69 in × 16.14 in (650 mm×170 mm ×410 mm) Power (Max) 1000 W VSWR(MAX) 1.2 Connection Type N-JK Impedance 50 Ω
