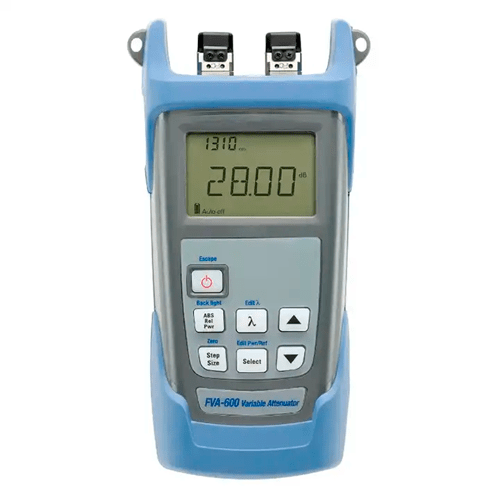

Compact Optical Attenuator with 0.01Resolution & Remote Control – GAOTek
$51.96
$82.62
Description Features Most compact and rugged portable attenuator on the market Three operating modes: Absolute, Relative and Power Backlit display, optimized for dim environments USB-based remote-control capability, for easy test routine integration Rechargeable Li-ion battery Technical Specifications Calibration Wavelengths 1310 nm to 1550 nm Wavelength Range 1250 nm to 1625 nm Wavelength Increment 1 nm Maximum Attenuation 65 dB IL ≤1.5 dB Resolution 0.01 dB Linearity ±0.1 dB Repeatability 2σ ±0.1 dB Optical Return Loss >50 dB Max. Input Power 24 dBm Battery Life (Hours) >300 hrs Relative Humidity 0 % to 95 % non-condensing Power AC adapter, rechargeable Li-ion battery Temperature Operating: −14 °F to 122 °F (-10 °C to 50 °C) Storage: -40 °F to 158 °F (-40 °C to 70 °C) Size 7.48 in x 3.94 in x 2.44 in (190 mm x 100 mm x 62 mm) (H x W x D) Weight 1.32 lb (600 g)
