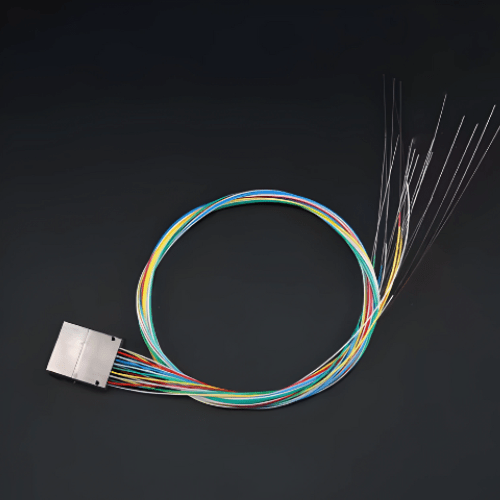

Description Overview GAOTek 16 channels ultra compact low mux demux is one model of new generation DWDM mux demux series devices with 1.18 in x in x 0.24 in footprint and 2.5 dB insert loss. Based on TFF and Free-space technology, taking patent advantage of optical path Zig-Zag design of multi-layers and all glass structure, GAOTek 16 channels ultra compact low IL 200 G DWDM mux demux devices are of ultra-small size, extreme low insertion loss, high reliability and excellent performance in comparing with traditional Three-port cascaded DWDM modules, they’re truly idea WDM gadgets which totally meet demand of new generation communication trend, smaller footprint, higher performance and energy efficient. Features Tiny footprint, fiber in and out on same side Very low insertion loss, extends transmission Stable at wide temperature, excellent thermal stability Individual channel adjustment Highly compressed optical path Stainless steel housing, laser welded Metal tube protects fiber, harsh environment suitable Technical Specifications Center Wavelength ITU Channel Spacing 200 GHz Channel Passband ±0.25 nm Insertion Loss ≤ 2.5 dB Passband Ripple ≤ 0.5 dB Return Loss ≥ 45 dB Directivity ≥ 50 dB Polarization Dependent Loss ≤ 0.3 dB Adjacent Isolation ≥ 30 dB Non-Adjacent Isolation ≥ 40 dB Pigtail Type 0.035 in (0.9 mm) white loose tube Power Handling ≤ 500 mW Operating Temperature -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) Storage Temperature -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) Dimensions 1.18 in x 0.91 in x 0.24 in (30 mm x 23 mm x 6 mm)
