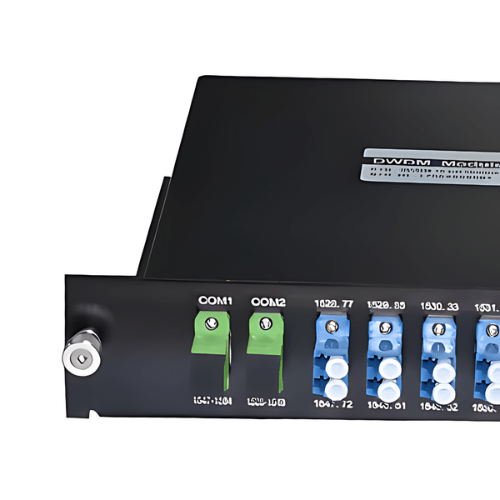

Description Overview GAOTek 16 channels ethernet passive optic fiber DWDM mux demux offers high stable and reliable bandwidth in a cost-effective and small package. DWDM Mux Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability. Features C Band DWDM MUX is based on the use of the wavelength ITU grid 2 channels to 44 channels DWDM Mux Demux Channel spacing: 0.8 nm, 100 GHz Grid Com port is simplex Protocol transparent, 10 Mbps to 100 Gbps Low insertion loss High Channel Isolation Epoxy-free optical path Wide Operating Temperature -40 ℉ to 185 ℉ Technical Specifications Channel Space, GHz 200 GHz Channel Number 16 Center Wavelength, nm ITU Grid Center Wavelength Accuracy, Nm ± 0.1 nm Channel Passband, at 0.5 dB, Nm 0.5 nm Fiber Type SMF-28 e with 900 um loose tube or customer specified IL, dB 3.8 dB Passband Ripple, DB 0.5 dB Isolation, DB 28 dB Adjacent Channel, 40 dB Non-Adjacent Channel PDL, DB 0.2 dB LGX Package 1 U, 2 U PMD, Ps 0.1 ps RL, DB 45 dB Directivity, DB 50 dB Maximum Optical Power, Mw 300 mw Operating Temperature, ℃ -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) Storage Temperature, ℃ -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃)
