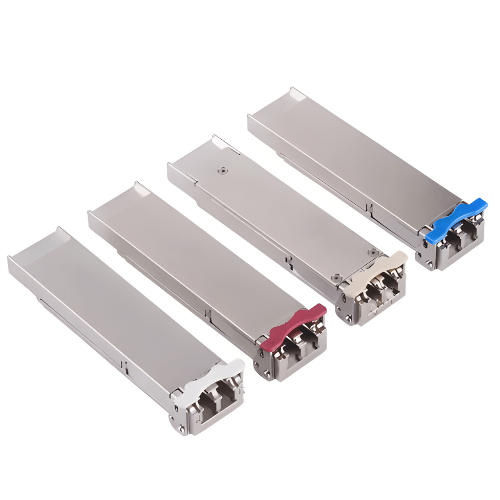

GAOTek 10 G DWDM C Band Channel Mux XFP Transceiver
$63.42
$82.45
Description Overview GAOTek 10 G DWDM C band channel mux XFP transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10 G DWDM SDH, 10 G BASE-ER and 10 G Fiber-Channel applications. The transceiver consists of two sections, The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. GAOTek 10 G DWDM C band channel mux XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. Features Selectable C-band ITU-T grid wavelengths 100 GHz DWDM system compatibility Data rate 9.95 Gbps to 11.1 Gbps No Reference Clock needed Cold Start up Wavelength Compliance DWDM-rated EML transmitter, APD receiver Link length up to 24.86 mi Low Power Dissipation, max 3.5 W Operating Temperature 23 ℉ to 158 ℉ Diagnostic Performance Monitoring included Technical Specifications Fiber Type Single mode Compatible All brands switch Wavelength DWDM Wavelength Function DDM Connector Dual LC No. of Fiber 2 Rate 10 G Transmission Distance 24.86 mi (40 km) Operating Temperature 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)
