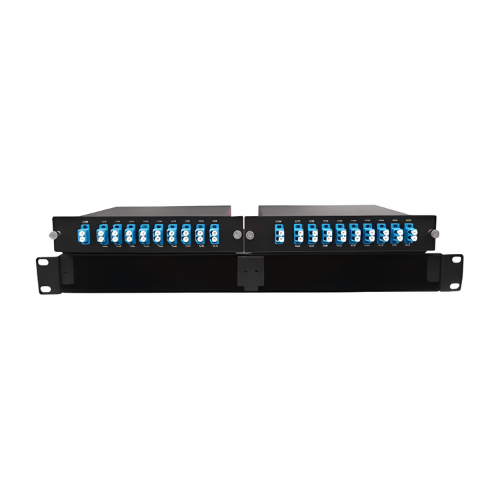

Description Overview GAOTek 1 U CWDM mux demux LGX cassette rack is over a single or duplex single mode fiber to extend overall bandwidth WDM. It offers high stability and reliability and has a compact package size. Its operating wavelength is from 1270 nm to 1610 nm, 1261 nm to 1611 nm which totally offer 18 channels with 20 nm channel spacing. This type is a very compact design in a 1 U Rack with 2-Slot Half-Sized LGX Cassette Single Fiber LC, UPC 1270 nm to 1610 nm 18 CH CWDM Mux Demux. Features Very Low Insertion Loss High Isolation High Reliability and Stability Low PDL Compact Design Good channel-to-channel uniformity Operating Wavelength 1270 nm to 1610 nm Operating Temperature -4 ℉ to 158 ℉ Industrial Operating Temperature -40 ℉ to 176 ℉ Technical Specifications Insertion Loss <2.50 dB Return Loss, dB >50 dB Operating Wavelength >55 nm Channel Bandwidth 1260 to 1610nm Channel Tness c ± 6.5 dB Directivity <0.40 dB Channel Uniformity <1.0 dB Isolation, dB Demux Adjacent Channel >30 dB Isolation, dB Mux or Reflection Channel >15 PDL <0.15 dB PMD <0.10 ps Wavelength Thermal Stability, nm/℃ <0.003 Insertion Loss Thermal Stability, dB/℃ <0.005 Isolation, dB – Demux Non-Adjacent Channel >40 Power Handling <500 mW Operating Temperature 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) Storage Temperature -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) Dimensions, mm 3.94 in x 3.15 in x 0.39 in (100 mm x 80 mm x 10 mm)
