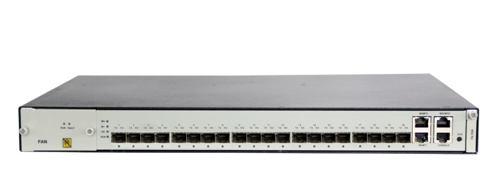

Description Overview Features Specifications Additional Information Overview GAO-WTP-101 with 20 Ports is a high-density transponder which adopts the advanced technology ASIC chip and can be used for Metro Access and Metro Aggregation optical transport network. It is able to provide the functionality of transport, multiplexing, switching, management, supervision and survivability of optical channels carrying client signals. It has been designed to provide support for optical networking using wavelength-division multiplexing (WDM). This GAOTek transponder is fully compliant with ITU-T standards, such as G.709 and G.798. Features Supports System Side Signal and Multiplexing. Supports Client Side Signal and Mapping Mode. The Transponder supports SNMP based Network Management System (NMS) Supports a Console port for troubleshooting and administration. It supports G.709, G.798 and G.975.1 OTNs (Optical Transport Networks). Technical Specifications System Side Signal and Multiplexing Structure 10 Port 10 G SFP (DWDM/CWDM or Grey): OCh <-> OTU2/OTU2e <-> ODU2/ODU2e Client Side Signal and Mapping Mode OC-192/STM-64 (via AMP or BMP) <-> ODU2 10 GBASE-R (via BMP) <-> ODU2e 10 GBASE-R (via GFP-F) <-> ODU2 10 GBASE-R (via GFP-F extended payload with preamble) <-> ODU2 FC8G (via BMP) <-> ODUflex FEC on 10 G System OTU2 Port Regular FEC (G.709) I.4 Super FEC (G.975.1) I.7 Super FEC (G.975.1) FEC on 10 G Client OTU2 Port Regular FEC (G.709) In-band DCN Management GCC0 on OTU2/2e GCC1 or GCC2 or GCC1 2 on ODU2/2e Out-band DCN Management Management Ethernet port Transmission Protection SNC/N SNC/I Maintenance PRBS Loopback Network Management System SNMP based NMS Shelf Type and Dimensions (mm) (W x D x H) 17.32 in x 13.77 in x 1.73 in (440 mm x 350 mm x 44 mm) Power Supply AC：Input 100 ~ 240 V，47 ~ 63 Hz DC：Input -40.5 V ~ -72 V Power consumption 110 W Client Interface 10 SFP based 10 G ports (10 GE LAN/WAN, STM-64/OC-192, FC8G, OTU2, OTU2e) System Interface 10 SFP based 10G OTU2/2e (DWDM/CWDM or Grey) Working Temperature 41 °F ~ 131 °F (5 °C ~ 55 °C) Storage Temperature 104 °F ~ 158 °F (40 °C ~ 70 °C) Relative Humidity 0% ~ 90%，non condensing Additional Information Main Unit & Parts Applications Point to Point Point to Point with Regeneration Two Stages of Multiplexing 10G Ring Application
