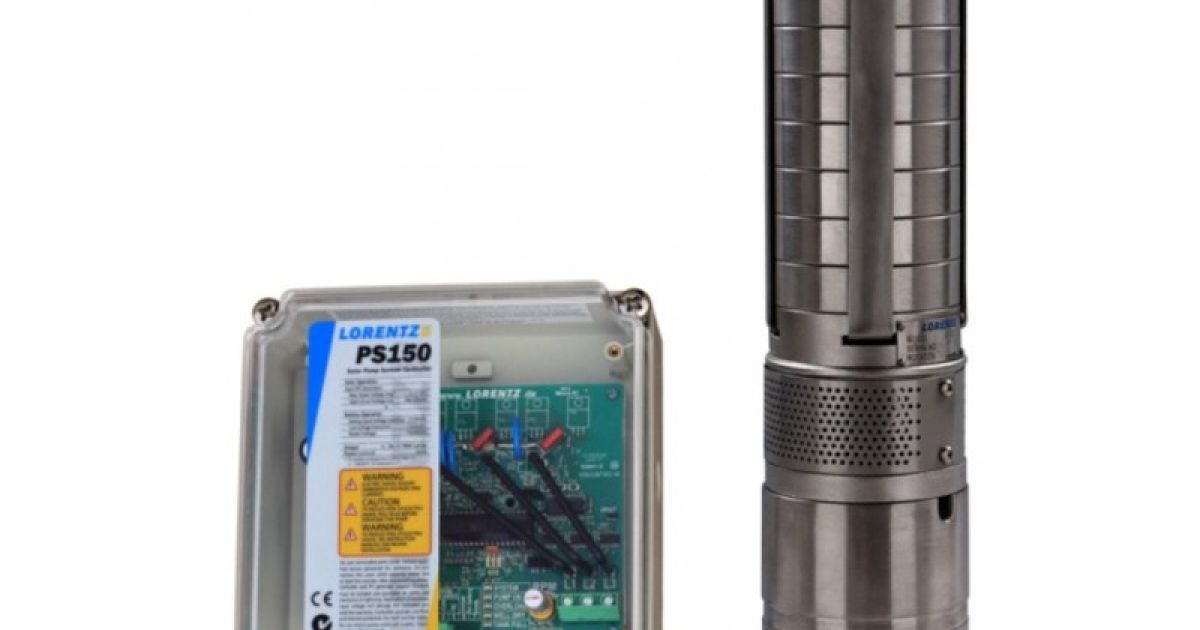

The Lorentz PS150-C KIT is a submersible solar pump, centrifugal type, for flow rates up to 5.0 m³/h (21 GPM) and lifts up to 20 meters (65 feet). Fit for 12 to 24V systems (1-2 solar modules or batteries in series). This pump can be used as a submersible pump or as a floating pump. It is an ideal solution for a variety of applications such as: Aeration, drinking water supply, livestock watering, pond management, and irrigation. PS150-C KIT is more powerful, energy efficient, quieter and much more durable than other pumps in this range. The motor is brushless and maintenance free. The kit contains a solar controller, motor, and pump end. Features PS150 Controller Controlling of the pump system and monitoring of the operating states Charge controller included Mounted at surface (no submerged electronic parts) Two control inputs for well probe (dry running protection), float or pressure switches, remote control Automatic reset 20 minutes after well probe turns pump off Protected against reverse polarity, overload and high temperature Speed control, max. pump speed adjustable to reduce flow rate to approx. 30 % Solar operation: Integrated MPPT technology Battery operation: Low voltage disconnect and restart after battery has recovered Max. efficiency 92 % (motor controller) Enclosure: IP 54 (sealed, weatherproof) ECDRIVE 200-C Motor Brushless DC motor Water filled No electronics in the motor Submersion max. 250 m Premium materials Pump End 10 cm / 4″ well diameter High life expectancy Non-return valve Premium materials Dry running protection (optional)
