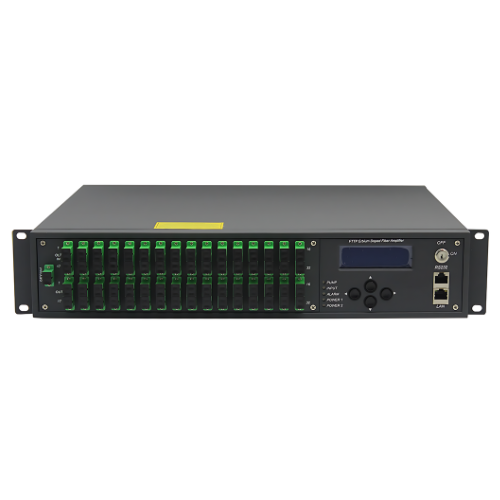

FTTH CATV PON EDFA WDM With High Power Optical Amplifier – GAOTek

Description Features 1540 to 1563nm operating wavelength for optical amplifier 500 to 13000 mW (27 to 41dBm) high output power. Low noise sub number ( Typ ≤4.5dB, Ma× ≤5.0 dB). High performance, high reliability. 8 to 64 uplink optical port, used in OLT. 8 to 64 1550nm output optical port, multiple× 1310 or 1490nm data stream. Can be compatible with any FTT × PON Technology: EPON or GEPON, GPON. Perfect RS232, SNMP. Efficient space, flexible installation and easy operation. Excellent P/P ratio   Technical Specifications CATV Operation Wavelength 1540 nm -1563 nm OLT Pass Wavelength 1310/1490 nm CATV Pass Wavelength Loss Ma× 0.8 dB at 1550 nm OLT Pass Wavelength Loss Ma× 0.8 dB at 1310/1490 nm CATV & OLT Isolation Min 40 dB Number Of Uplink Optical Ports (For OLT) Ma × 64 pcs CATV Input Power (Pi) -10 to 10 dBm Total Output Power Ma× 41 dBm Number Of Output Ports Ma× 64 pcs Each Port Output Power 0 dBm to 22 dBm Difference Of Each Output Power -0.5 dB to 0.5 dB Output Optical Power Monitoring -20 dB Output Power Adjustable Range -6 dBm to 0 dBm Noise Figure Typ 4.5 dB, Ma× 5.5 dB Polarization Dependence Loss Ma × 0.3 dB Polarization Dependence Gain Ma × 0.4 dB Polarization Mode Dispersion Ma× 0.3 ps Input/Output Isolation Min 30 dB Pump Power Leakage Max -30 dBm Echo Loss Min 55 dB (APC) Network Management Interface RJ45 Serial Interface RS232 Power Supply 90 V – 265 V (220 VAC), 30-72 V (-48 VDC) Power Consumption Ma × 150 W Operation Temperature 23 °F to 149 °F ( -5 °C to 65 °C) Storage Temperature  -40 °F to 176 °F ( -40 °C to 80 °C) Relative Humidity 5 % to 95 % Size (W×D×H) 19 in × 14.7 in × 3.5 in (48.26 cm × 37.34 cm × 8.89 cm)
