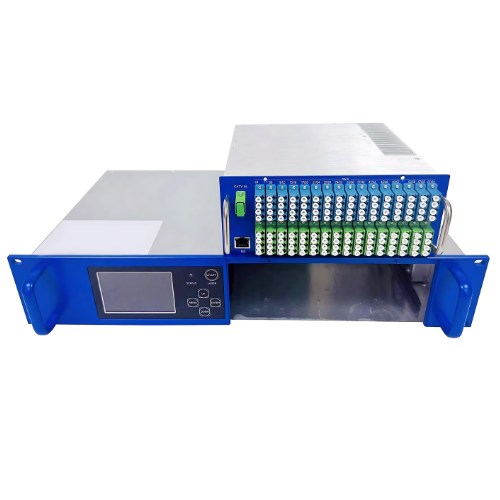

Co-Doped Fiber Amplifier With 64 Ports And 32 DBm To 45 DBm – GAOTek

Description Technical Specifications Optical Operating Wavelength 1535 nm to 1565 nm Input Optical Power Range -10 dBm to 10 dBm Noise Ratio ≤5.0 dB (0 dBm, @1550nm) Gain Flatness < ± 0.3 dB Optical Power Output Stability < ± 0.5 dB Polarization Sensitivity < 0.2 dB Polarization Mode Dispersion < 0.5 ps Input End Pump Leakage Power ≤ – 30 dB Output End Pump Leakage Power ≤ – 30 dB Optical Input, Output Return Loss > 45 dB (APC Stepped Face) Pump Operating Number 2 to 5 PCs Rated Output Power 32 to 45 dBm Linker (IN) SC/APC or LC/APC Linker (OUT) SC/APC or LC/APC Power Supply/Consumption AC 165 to 265 V or DC -48/20 W Network Management Connector RJ45 (following national network management standard, supports WEB) PON Wavelength 1310 nm / 1490 nm XG(S)-PON Wavelength 1310/1490 & 1270/1577 nm (customized) PON Linker SC/UPC or LC/UPC Uplink Optical Ports 64 pcs Output Ports 64 pcs PON Insertion Loss <1.2 dB 1550 Port Insertion Loss <0.7 dB Optical Isolation 40 dB Insertion Loss <1 dB Harass <-60 dB (isolation between A and B) Switch Time <10 ms Switched Power Threshold Range -5 to 10 dBm Operating Temperature -36 °F to 165.3 °F (-20 °C to 65 °C) Storage Temperature -22 °F to 158 °F (-30 °C to 70 °C) Operating/Storage Humidity 5 % to 90 % Case Size (2U) 20.87 in × 19.13 in ×3.46 in (53 cm ×48.6 cm ×88 mm) Case Size (3U) 20.87 in ×19.13 in ×5.24 in (530 mm ×486 mm ×133 mm)
