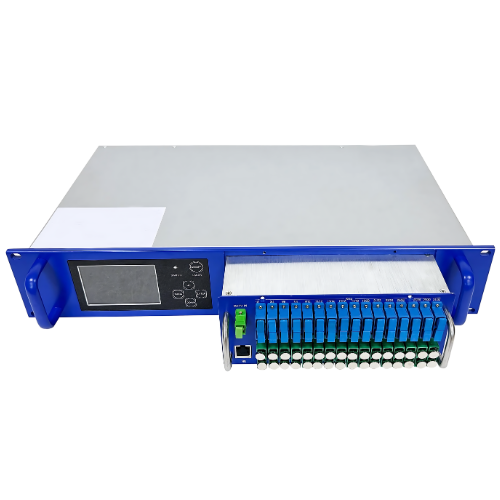

CATV Integrated Optical With 32 Port And RJ45 Network – GAOTek

Description Technical Specifications Optical Operating Wavelength 1535 to 1565 nm Input Optical Power Range -10 to 10 dBm Noise Ratio ≤5.0 dB (0 dBm, @1550 nm) Gain Flatness <±0.3 dB Optical Power Output Stability <±0.5 dB Polarization Sensitivity <0.2 dB Polarization Mode Dispersion <0.5 ps Input End Pump Leakage Power ≤-30 dB Output End Pump Leakage Power ≤-30 dB Optical Input, Output Return Loss >45 dB (APC Stepped Face) Pump Operating Number 2 to 5 PCs Rated Output Power 27 to 45 dBm Linker (IN) SC/APC Linker (OUT) SC/APC Power Supply/Consumption AC165 to 265 V or DC-48/20 W Operating/Storage Humidity 5 % to 90 % Network Management Connector RJ45 (following national network management standard, supports WEB) XG(S)-PON Wavelength 1310/1490 & 1270/1577 nm XG(S)-PON Linker SC/UPC Uplink Optical Ports 32 pcs Output Ports 32 pcs XG(S)-PON Insertion Loss <1.2 dB 1550 Port Insertion Loss <0.7 dB Optical Isolation Between CATV & OLT 40 dB Optical Switch Insertion Loss <1 dB Harass < – 60 dB (isolation between A and B) Switch Time <10 ms Switched Power Threshold Range -5 to 10 dBm Operating/Storage Temperature -36°F to 165.3°F (-20°C to 65°C)/ -22°F to 158°F (-30°C to 70 °C) Case Size 19 in × 16 in × 3.5 in (48.26 cm × 40.64 cm × 8.89 cm)
