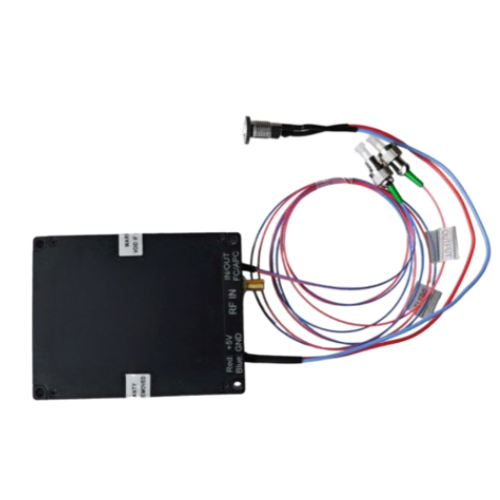

1550nm SOA Optical Pulse Modulation Module High Speed Compact – GAOTek
$35.44
$43.24
Description Technical Specifications Parameter Unit Minimum Typical Maximum Operating Wavelength nm 1550 — Input Optical Power dBm -30 0 5 Output Optical Power dBm -5 10 Pulse Width ns 2 100 Input Pulse Current @1 mA 0 350 Modulation Frequency kHz 0.1 1000 Output Peak Power mW 10 30 Rise/Fall Time ns 3 6 Modulation Extinction Ratio (High/Low Level) dB 60 Optical Shut-off Extinction Ratio dB 55 Operating Temperature Range °C -5 55 Storage Temperature Range °C -40 85 Fiber Type — SM or PM Supply Voltage VDC 5 Input Modulation Signal — TTL Pulse Signal Dimensions mm 90 × 38.5 × 15 Communication Protocol — RS485 Operating Mode — External Trigger
