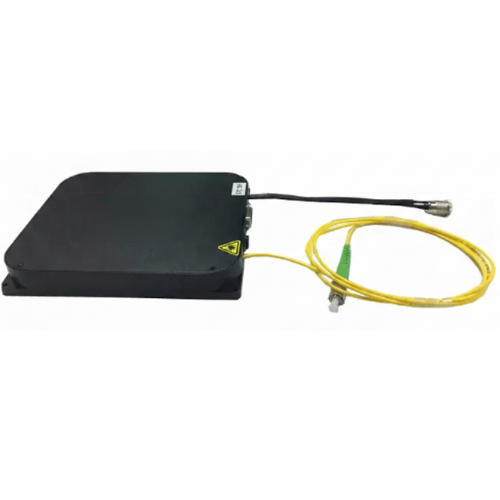

1550nm Semiconductor Optical Amplifier Switch Type Module – GAOTek
$60.69
$108.03
Description Technical Specifications Parameter Symbol Min. Typ. Max. Unit Center Wavelength λc 1525 1550 1565 nm 3 dB Wavelength Bandwidth BW 40 nm 3 dB Saturated Output Power P 10 30 mW Input Optical Power P 7 mW Modulation Frequency 0.1 1000 kHz Pulse Width 1 2 100 ns Pulse Width 2 5 1000 ns Modulation Extinction Ratio (High/Low Level) ER 60 dB Extinction Ratio (On/Off) ER 55 dB Voltage Supply 5 V Modulation Signal Format TTL Communication Interface RS485 Operating Temperature T -5 55 °C Storage Temperature T -40 85 °C Operating Humidity 5 90 %RH Package 90 × 70 × 15 mm Fiber Type SMF-28e or PM 1550 Panda Fiber
