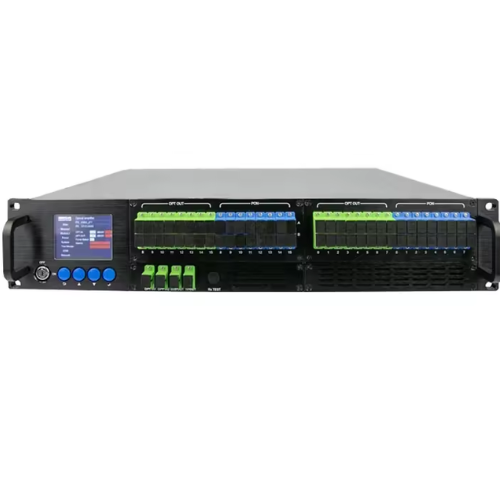

1550nm PON EDFA Optical Amplifier With CATV Transmission – GAOTek
$69.98
$125.96
Description Technical Specifications CATV Working Wavelength 1535 nm to 1565 nm PON OLT Working Wavelength 1310 nm to 1490 nm Output Power Stability ±0.1 dB Noise ≤ 6 dB Reflective Loss ≥ 45 dB OSW 2 Insertion Loss ≤ 1.2 dB Switching Time < 0.5 s Direct-Modulation Transmitter 1550 nm Input Level 75 dBuV to 90 dBuV Output Power 3 dBmW or 5 dBmW or 7 dBmW or 10 dBmW RF Test ≥ 56 dBuV Optical Connector SC/APC; SC/PC; LC/APC; LC/PC C/N ≥ 50 dB C/CTB ≥ 65 dB C/CSO ≥ 65 dB Power Consumption < 150 W Operating Temperature Range 23 °F to 122 °F (-5 °C to 50 °C) Maximum Working Relative Humidity Maximum 95 % non-condensing Maximum Storage Relative Humidity Maximum storage relative humidity Type EDFA Use CATV Transmission Network GSM Input Power -5 dBm to 10 dBm Max Output Power 41 dBm Connector SC/APC; SC/PC; LC/APC; LC/PC Power Supply AC 90V to AC 265V Size 16.46 in × 18.90 in × 3.50 in (41.8 cm × 48 cm × 8.9 cm) Storage Temperature Range -40 °F to 176 °F (-40 °C to 80 °C)
