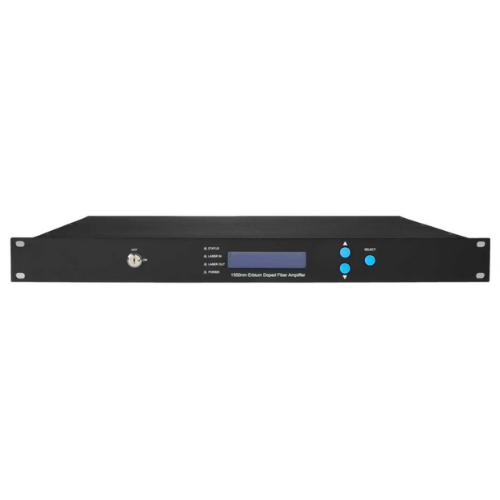

1550nm High Power Dual Input Optical Fiber Amplifier System – GAOTek
$54.47
$83.88
Description Technical Specifications Category Items Unit Index Remarks Min. Typ. Max. Optical Index CATV Operating Wavelength nm 1545 1565 Optical Input Range dBm -8 10 Output Power dBm 40 1dBm interval Output Adjustment Range dB -4 0 0.1dB each step Output Ports Uniformity dB -0.7 0.7 <±0.7dB Output Power Stability dB -0.3 0.3 <±0.3dB No. of Output Ports No. 4 SC/PC 8 SC/PC 16 SC/PC 32 SC/PC、LC/PC 64 LC/PC 128 LC/PC Switching Time of Optical Switch ms 8 Optional Insertion Loss of Optical Switch dB 0.5 0.8 Noise Figure dB 6 Pin：0dBm PDL dB 0.3 PDG dB 0.4 PMD ps 0.3 Remnant Pump Power dBm -30 Optical Return Loss dB 45 Fiber Connector SC/APC FC/APC, LC/APC General Index RF Test dBμV 78 82 Optional Network Management Interface SNMP, WEB supported Power Supply V 90 265 AC -72 -36 DC Power Consumption W 100 Dual power supply、Output 40dBm Operating Temp ℃ -5 65 Storage Temp ℃ -40 85 Operating Relative Humidity % 5 95 Dimension mm 370×483×88 W、L、H Weight Kg 7.5
