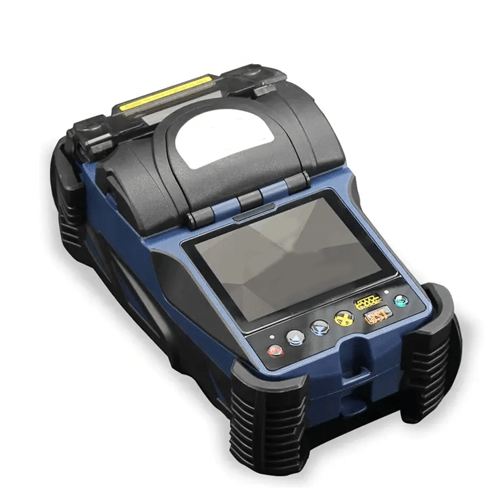

Fiber Fusion Splicer with 13s splice time & ≥60db Return Loss – GAOTek
$65.19
$108.87
Description Features Tumtec new fiber fusion splicer Up to 3S boot 6 s splicing 13 s heating Compact active V-groove fusion splicer Unique three-dimensional core setting Excellent splicing effect Lower loss Improve the work efficiency Technical Specifications Certification CE RoHS FCC Operating Temperature 5 °F to 131 °F (-15 ℃ to 55 ℃) Storage Temperature -13 °F to 149 °F (-25 ℃ to 65 ℃) Motor Numbers 4 Battery 2200 mAh Language Multi Language Applicable Fibers SM (ITU-T G. 652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G655) Compatible Fiber Cable 0.009 in x 0.11 in (0.25 mm x 3.0 mm) Indoor Cable Cleaved Length Coating Diameter: 0.009 in x 0.03 in (0.125 mm x 1mm) Cleave length 0.31 in x 0.62 in (8 mm x 16 mm) Splicing Mode Preset 41 splicing modes, storable 100 modes Typical Splice Loss SM: 0.03 dB or MM: 0.02 dB or DS: 0.05 dB or NZDS: 0.05 dB or G657: 0.03 dB (ITU to T Standard) Return Loss ≥60 dB Lighting 2 powerful white LEDs Splicing Time SM fast mode: 6 s Estimated Splice Loss Yes Protection Sleeve Length 0.78 in x 2.36 in (20 mm x 60 mm) Heating Tank Preset 5 kinds of thermal heating tube: 0.78 in x 1.18 in x 1.57 in x 1.96 in x 2.36 in (20 mm x 30 mm x 40 mm x 50 mm x 60 mm), Max 100 modes Heating Time Fast heating time: 13 s, Typical Heating Time: 30 s Results Storage 20000 latest records & 200 images Tension Test 1.5 N to 2.0 N Display 3.5 in (8.89 cm) high resolution display with touch screen Fiber View & Magnification X, Y, XY, X or Y :380 × Magnification Power Supply AC Input 100 V to 240 V, DC Input 12 V to 15 V Heating Times Typical above 120 times (splicing heating) Operating Methods Button or Touch Screen Automatic Calibration Automatic ARC calibration by air pressure and temperature Electrode Life Automatic ARC calibration by air pressure and temperature Terminal USB 2.0 Dimension 5.31 in x 8.07 in x 3.85 in (132 mm x 205 mm x 98 mm) (including rubber Bumper) Weight 2.53 Ib (1.15 kg) (including rubber Bumper)
