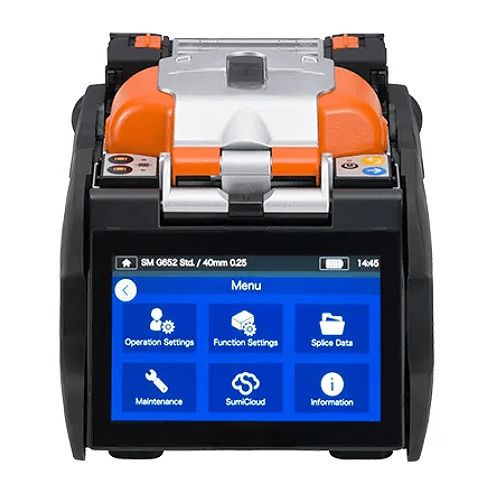

Fiber Fusion 5s Splicing with 6 Motors and 300x Zoom – GAOTek
$64.55
$99.41
Description Features High-definition core Alignment Faster Splicing 5 s Heating time 9 s Splicing loss SMF 0.01 dB (Typical) Fully optimized dual independent ovens Touch panel operation with brand-new UI Smartphone-like effortless operation Long battery life IP x 2 water protection IP x 5 dust protection Work at 3.73 mi (6000 m) 92 in (76 cm) drop on 5 faces 85 lb. (2.2 kg) with battery Faster 5 s splice in SM Quick Mode 9 s heat shrink time Wide and high-resolution touch panel 5 in (12.7 cm) touch screen LCD display IPx2 water protection IP5x dust protection Splice at 122 °F (50 °C) Work at 3.73 mi (6000 m) Productive Programmable User selectable clamp operation Technical specifications Fiber Single mode (G.652 & G.657), Multimode (G.651), DS (G.653), EDF (G.657) Fiber Diameter Fiber Cladding: 80 μm to 150 μm, Coating: 100 μm to 1,000 μm Fiber Cleave Length 0.2 in to 0.63 in (5 mm to 16 mm) Splicing Time Quick Mode: 5 s, Standard and Auto Mode: 7 s Heating Time 9 s Splice and Heat Cycles 300 per full charge Fiber View And Magnification 2 CMOS cameras, 380 x (Zoom: 760 x) Splice Image Capture or Data Storage 200 images and 10,000 splice data Weight 4.19 lb (1.9 kg)
