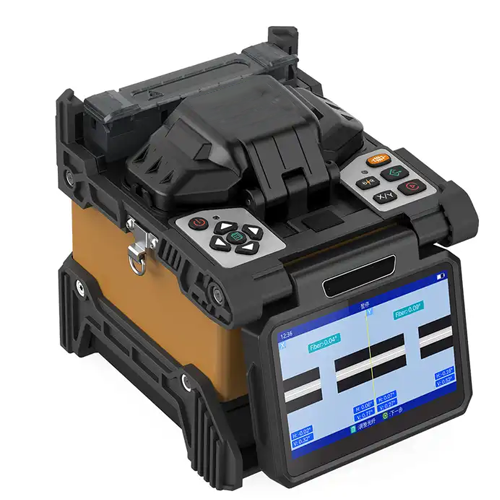

Core Align Fiber Splicer High Precision and Fast Splicing – GAOTek
$55.3
$82.95
Description Features 4 motors real core alignment Auto splice and auto heat function Fully rugged for shock, dust, and moisture Electrode life 5000 times Tool-less electrode replacement 6800 mAh High-capacity battery Technical Specifications Splice Method Core Alignment Compatible Fiber 0.009 in to 0.11 in (0.25 mm to 3.0 mm) Fiber Holder Replaceable Universal fiber holder Fiber Diameter Cladding: 80 µm to 150 µm, coating: 100 µm to 1000 µm Fiber Cleave Length 0.31 in to 0.62 in (8 mm to 16 mm) Splice Mode Max 128 modes Typical Splice Loss SM: 0.02 dB or MM: 0.01 dB or DS: 0.04 dB or NZDS: 0.04 dB or G.657: 0.02 dB Return Loss >60 dB Splicing Time SM quick mode: 8 s or SM Average: 10 s Estimated Splice Loss Available Heating Time 18 s Protection Sleeve Length 0.7 in, 1.1 in, 1.9 in, 2.3 in (20 mm, 30 mm, 50 mm, 60 mm) Heat Programs Max 32 modes Battery Capacity 6800 mAh battery capacity, typical 300 cycles Electrode Life 5000 arcs Tension Test 1.96 N to 2.25 N Operating Condition Altitude: 3.10 mi (5000 m), 0% to 95% Relative humidity, -4 °F to 122 °F (-20 °C to 50 °C) Max wind 15 m/s Storage Condition 0% to 95% relative humidity, -4 °F to 140 °F (-20 °C to 60 °C) Fiber Magnification X, Y, XY, X/Y: 320 X Magnification Power Supply AC input 100 V to 240 V, DC input 9 V to 14 V Terminal USB 2.0 Size 5.6 in x 5.3 in x 6.10 in (143 mm x 136 mm x 155 mm) Weight 3.5 lb (1.6 kg), 4.1 lb (1.9 kg)
