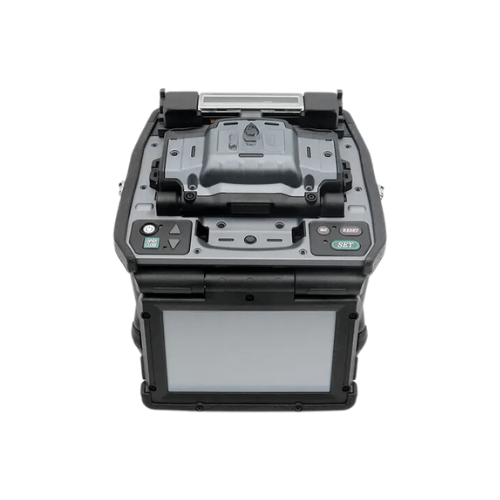

Core – Alignment Fiber Fusion Splicer with Auto Wind Shield – GAOTek

Description Overview GAOTek fiber fusion machine is mainly aimed at users who focus on core alignment fusing applications. It is equipped with a wind shield that can be switched on and off automatically, a color LCD touch screen and a large lithium battery. It is a high-quality fiber core alignment fiber fusion machine, which can be applied to all kinds of trunk lines, MAN, and access network of fiber connection engineering.   Features Core alignment Single core fiber fusion machine Automatic on and off wind shield Automatic induction heating function Convenient heat shrinks sleeve positioning mode Multifunctional sheathed press plate Replace electrode rod without tool Large capacity 6380 mAh lithium battery 5 in (12.7 cm) color LCD touch screen Built-in video and PDF instructions   Technical specifications Optical Fiber Alignment Fiber core alignment Applicable Optical Fiber Types SMF (G.652), MMF (G.651), DSF (G.653), CSF (G.654), NZDSF (G.655), BIF (G.657) The Cladding Diameter 80 μm – 150μm Diameter Of Coating Layer 100 μm to 0.12 in (3 mm) Fiber Cutting Length 0.197 in to 0.63 in (5 mm to 16 mm) Fusion Or Heating Mode 100 weld modes and 30 heating modes Welding Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS), 0.04 dB (CS) Welding Time SM FAST mode: 7 s Heating Time 60mm mode: 25 s Fusion Result Storage 20,000 records, 100 fused image storage Optical Fiber Observation Mode Two-axis viewing 5 in (12.7 cm) TFT color touch screen Magnification X or Y alone shows 320 times and X, or Y simultaneously shows 200 times Tensile Test 2 N Return Loss > 60 dB Corresponding To Heat Shrinkable Tube Miniature heat shrinks tubes for 2.36 in (60 mm), 1.57 in (40mm) and Fujiura Battery Fusion Heating Times Sustain 300 fusion heating cycles with BTR-15 lithium battery (6380 mAh lithium battery) Ac Power Supply 100 V to 240 V AC (50 Hz to 60 Hz) Electrode Rod Life Weld more than 5000 cores Interface USB 2.0 (Mini-B), used for PC connection, supports Internet networking software upgrade; USB 2.0 (Type A), which can be used to connect external LED lights and charge mobile devices; 6-pin Mini-DIN port for RS02 or 03 hot stripping pliers power supply Operating Conditions Altitude: 0 mi to 3.011 mi (0 m to 5000 m), wind speed: 15m/s Temperature: 14 ° F to 41 ° F (-10 ° C to 5 ℃, humidity: 0 % to 95 %RH Fall resistance: 29.92 in (76 cm) height free fall in six directions Anti-corrosion Performance Rainproof: The precipitation is 0.39 in (10 mm) / hr. for 10 minutes Dust proof: exposed to dust (0.1 μm to 500 μm size of aluminum silicate particles) Optical Fiber Alignment Fiber core alignment Applicable Optical Fiber Types SMF (G.652), MMF (G.651), DSF (G.653), CSF (G.654), NZDSF (G.655), BIF (G.657) The Cladding Diameter 80 μm to 150 μm Diameter Of Coating Layer 100 μm to 0.118 in (3 mm) Fiber Cutting Length 0.197 in to 0.63 in (5 mm to 16 mm) Fusion/Heating Mode 100 weld modes and 30 heating modes Welding Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS), 0.04 dB (CS) Size 6.69 in x 6.8 in x 59 in (170 mm x 173 mm x 150 mm) (excl. protrusion) Weight Contain batteries 5.95 lb. (2.7 kg)
