The Hydro-None Kit

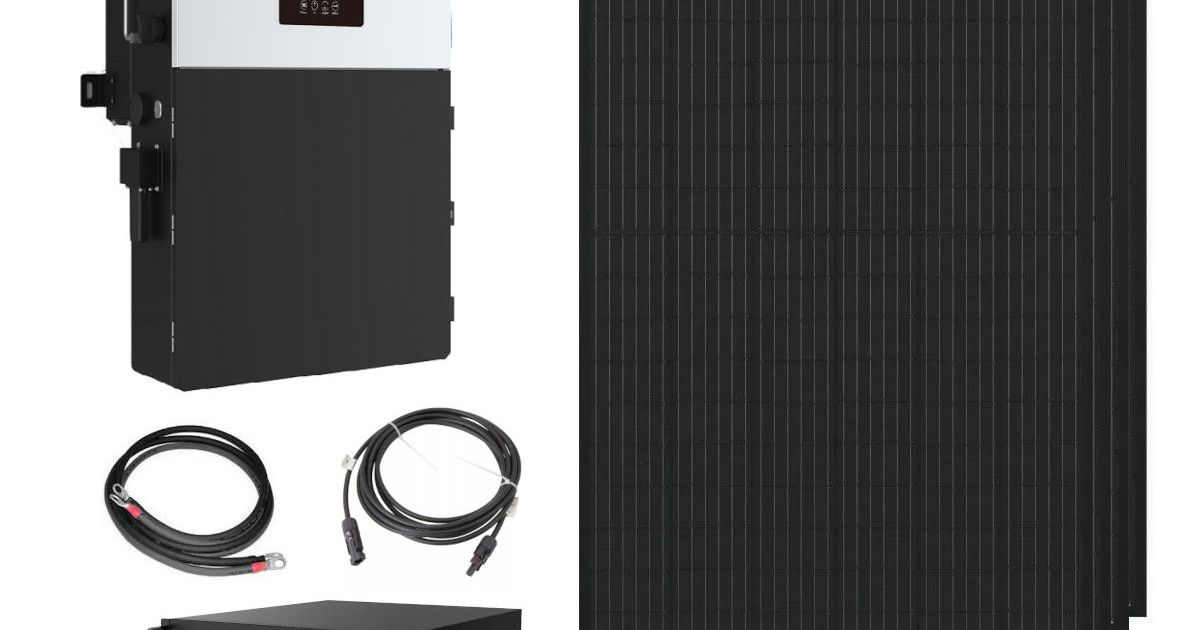

Want to stick it to The Man?  If you answer with a resounding “Hell Yes”, the Hydro-None kit is for you! The name may be confusing for those that do not live in Ontario; our largest electrical provider is named “Hydro-One”. Hence the name of our kit. Now, depending on your energy use this kit may or may not be enough to offset your entire use. The average monthly energy use for a Canadian household is around 1000 kWh/month, and that is what this kit will produce for the southern parts of Canada. This kit also adds battery backup power, either to get you through the times the grid takes an unscheduled nap, or to (as much as possible) use the energy you produce yourself, rather than the grid. This kit does not Cut The Cord, it is meant to be used with a grid connection. Going completely off-grid is possible, though generally not financially viable.  14,760 Watt in solar PV, 10,000 Watt grid-tie hybrid inverter, 10 kWh lithium-ion battery storage. Can produce up to 17,600 kWh/year (for a good south-facing roof in southern/eastern Ontario). This kit can be used for a Net-Metering system, while staying within the 10kW limit (determined by the inverter). All the parts are code-compliant for a system that when installed correctly will pass electrical inspection. The parts listed in this kit is just one example, and we will be happy to work with you to change or tailor things to fit your exact needs! For example, the amount of battery storage is flexible, solar panels can be added or removed etc. This kit contains the following components: 1x Lux Power LXP-LB-US-10K, All-In-One 10kW pure-sine inverter, 48V DC in, 240 VAC split-phase out, 18kW 3-MPPT PV charger, 250A charger, CSA-listed, 10 year warranty 1x Longi LR5-54HPB-410M, 410 Watt, 54-cell mono PV module, black-on-black, whole pallet of 36, black-on-black 36x APsystems RSD-S-PLC, Rapid Shutdown Device (single), 80V DC, 15A, 1000V strings, MC4 connectors, 415002 2x Volthium 51.2-100-RH-3U-C, lithium-ion 48 Volt deep-cycle, 100Ah, 6000 cycles, 4 6 years warranty 2x Battery interconnect 1/0 AWG, 8″, flexible wire with 3/8″ lugs 1x Inverter cables 2/0 AWG, 10 ft (pair), DLO flexible wire with 3/8″ lugs, CSA listed, black 18x Kinetic Solar Rapid One Rail 15’5″, KRAPID1-185-M (each, holds exactly 4 panels in portrait) 12x Kinetic rail splice/joiner with integrated bonding washers, KJS2-MA (each) 78x Kinetic 3″ “L” Bracket Kit, with K-Nut, S.S. Bolt, washer and lock washer, KLB3-M (each) 78x Kinetic Flashing Kit with four 1/4″ x 2″ self-drilling screws, KFLK-44S (each) 7x Geocel 2300, tri-polymer roof sealant – crystal clear, tube 10.3 fl. oz., good for 50 years under UV-exposure 12x Kinetic Black End Caps for Rapid One Rail, KRCP-B (each) 66x Kinetic Mid Clamp – 30 – 46mm BLACK – with K-Nut, bolt, and integrated WEEB, KMWC3046-BM (each) 12x Kinetic End Clamp – 30mm BLACK – with K-Nut, S.S. Bolt, Washers and Lock Washers, KEC35-BM (each) 3x Kinetic WEEB Bonding clip for Kinetic Rails and Joiner, KSR-WEEB (each) 3x Kinetic Ground Lug Mount (K-Nut) with Ground Lug, KHGLUG-M (each) 1x Kinetic Squirrel Guard Black Coated Wire Mesh 8″ Wide, KHSG-M (100 ft roll) 1x Kinetic Stainless Steel “J” Hook for Squirrel Guard, KHSG-J (100 pack, 1 per foot needed) 2x HellermannTyton PA66UV 12″ cable tie for solar PV, pack of 100, UV resistant for outdoor use, T50I0UVC2 1x Staubli / Multi-Contact PV-AZB4-EVO 2-UR, MC4 Y-connector, (1) male / (2) female, 1500V, 50A 1x Staubli / Multi-Contact PV-AZS4-EVO 2-UR, MC4 Y-connector, (2) male / (1) female, 1500V, 50A 1x MC4 extension wire, 58 feet black, MC4 connector both ends 1x MC4 extension wire, 52 feet black, MC4 connector both ends 1x MC4 extension wire, 46 feet black, MC4 connector both ends 1x MC4 extension wire, 14 feet black, MC4 connector both ends 1x MC4 extension wire, 8 feet black, MC4 connector both ends This kit contains racking for a layout of 3 rows of 12 panels in portrait orientation for a shingle roof. We can tailor the kit to exactly fit your needs for your roof, or ground mount: We can design it with more solar modules, or less, and change the roof layout to fit your roof, or change parts to fit a steel roof. Just contact us and let us know how we can help! This 10kW Grid-Tie Kit includes the major components needed to install a 14.7 kW grid-tie solar array on your roof. With electricity prices increasing, there is no better way to reduce your costs while reducing your carbon footprint than with solar PV! This system is perfect for Net-Metering! The average Canadian household consumes 12,000 kWh of electricity per year. This 10 kW grid-tie system can offset all of that electrical consumption, greatly reducing your electrical bill! For more information check out our Net-Metering article. This package includes a Lux Power 10K hybrid inverter,  with 10 kW string inverter. The Lux Power inverters support a battery bank of your choosing to provide power to critical loads in your house for when the electrical grid goes down. The battery storage can also be used to do peak-shaving (fill up the battery during the cheap hours, and use that electricity during the peak-hours). The racking included in this kit is designed for 3 rows of 12 panels in portrait mounted on a shingle roof. We can customize the racking in this system to fit your roof: If you have roughly 600 square feet of shade free roof facing between East and West, we can design a 10 kW solar system for your roof! Black-On-Black modules: The Black-On-Black 410 Watt panels make for a great-looking system! These panels look very uniformly dark, nearly black, making for a very pleasing look on any roof! We even included black clamps and black end-plates to create a very “uniform looking” and aesthetically pleasing finish. The solar panels do not just look good, they also perform great and last a very long time (25-year warranty)! Do it Yourself! We can design your system and provide advice through the installation process. If you posses good DIY skills and are not afraid of working on a roof then a Do-It-Yourself grid tied solar installation could very well be in the cards for you: This can save quite a bit of money and make payback and Return-On-Investment significantly better! We have years of experience designing and installing system. We can even help with the application process! If you have questions give us a call or email and we’d be happy to help!
