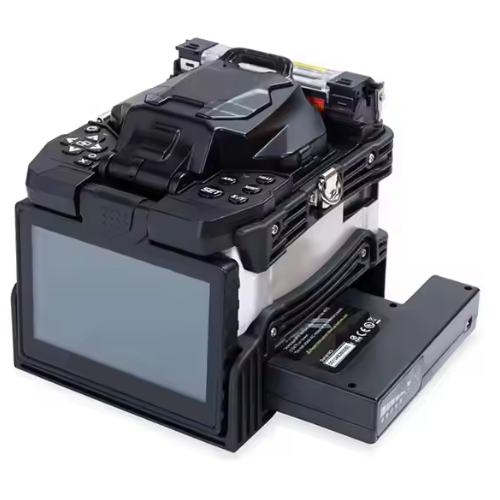

Backbone Fusion Splicer Machine With High Power – GAOTek
$48.19
$78.07
Description Features Fiber type identification function, 6 motors core alignment V groove precise alignment, high quality and low loss Auto splicing mode, using friendly design Dust, proof, water proof, high temperature resistance, adapting to various altitude and harsh environment 5 high resolution color LCD touch screen, 500 X magnification, visible clearly with bare eyes Packed with detachable 5200 mAh battery, more than 280 times of splicing and heating High power LED white light simplifies your work at night Detachable multifunction fixture, suitable for various fiber type Technical Specifications Number of Fiber Single Compatible Fiber 0.25 mm to 3.0 mm Cable Indoor Cable Typical Splice Loss 0.01 dB to 0.05 dB Return Loss ≥ 60 dB Lighting 3 high power LED white light Splicing Time 6 s to 12 s Heating Sleeve Length 20 mm to 60 mm Results Storage 2000 latest records Tension Test 1.5 N to 2.0 N Power Supply AC Input 100 V to 240 V, DC Input 12 V to 15 V Operating Methods Button or Touch Screen Altitude 0 m to 5000 m Humidity 0 % to 95 % Temperature 14 ℉ to 122 ℉ (-10 ℃ to 50 ℃) Size 5.51 in x 6.50 in x 6.30 in (14 cm x 16.5 cm x 16 cm) Weight 5.07 lbs (2.3 Kg)
