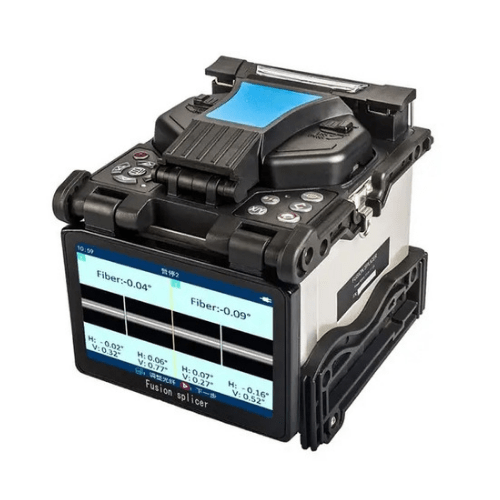

Automatic Fusion Splicer with Single Fiber Count Dual Ports – GAOTek

Description Features Core to core alignment by PAS technology Fiber core can be displayed clearly Single X or Y view and X & Y view Real-time & auto control of ARC power Auto check & display quality of cleaved end face Low splice loss control technology Auto compensation of low air pressure Software upgrade via USB interface   Technical specifications Applicable fibers SM MM DS NZDS Fiber diameter Cladding diameter: 80 um to 150 um;Coating diameter: 100 um to 1000 um Fiber count Single Fiber cleaved length 0.31 in to 0.63 in (8 mm to 16 mm)(Coating diameter: 250 um) Actual average splice loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) Typical splicing time Typical 9 s (standard SM fiber) Return loss >60 dB Splicing mode Auto Calibrate Normal Special Fiber aligning method Meticulous. Core. Clad. Manual Splicing program 100(user mode), 53(factory mode) Tube heating program 40 (user mode), 9(factory mode) Tube typical heating time Typical 16 s to 25 s Protection sleeve length 10000 results, 24 parameter per result, 100 set of images Storage of splice result 2.36 in (60 mm), 1.57 in (40 mm) Fiber image magnification 120 x (X or Y view), 60 x (X and Y view) Battery capacity Typical 300 cycles (splice or tube heat with inner Li battery, 5200 mAH) Monitor 4.3 in (10.92 cm) color LCD monitor Tension test 2 N Electrode life 2500 Terminal USB Power supply AC 100 V to 240 V with AC adapterDC 13.5 V Inner Li battery (5200 mAH) Operating condition 0 mi to 3.011 mi (0 m to 5000 m) above sea level,14 ° F to 122 ° F (-10 °C to 50°C) Max wind velocity of 15 m/s Dimension 5.24 in x 6.3 in x 5.67 in (133 mm x 160 mm × 144 mm) Weight 3.64 lb (1.65 Kg) excluding battery4.04 lb (2 Kg) including battery
