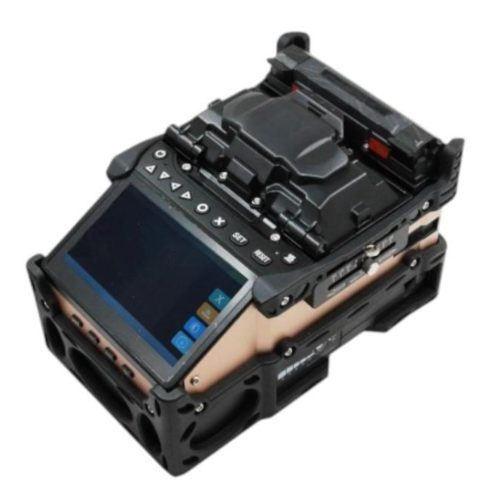

Automatic Core-Alignment Fusion Splicer with VFL & Power Meter – GAOTek
$49.79
$78.17
Description Features 6-motor core-alignment 5s fast splicing, 11s overspeed heating With VFL and power meter function 4.3-inch-high resolution LCD touch screen with 380x magnification Independently developed new structure heater, compatible with multi-type connectors Multi-gear adjustable handle, convenient for multi-scene operation Independent R&D of integrated mechanical core module Integrated fiber-adjust frame, which make performance much stable Technical Specifications Applicable Fiber Types SM (ITU-T G.652 & G.657); MM (ITU-T G.651); DS (ITU-T G.653); NZDS (ITU-T G.655) Compatible Cable Size 0.010 in to 0.118 in (0.025 cm to 0.3 cm); Indoor drop cable Cladding Diameter 0.00315 in to 0.00591 in (80 µm to 150 µm) Coating Diameter Coating Diameter: 0.00492 in to 0.03937 in (125 µm to 1000 µm) Cleaved Length Cleave Length: 0.315 in to 0.63 in (8 mm to 16 mm) Splicing Mode Preset: 41 splicing modes, storable up to 100 modes Typical Splice Loss SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB; G.657: 0.04 dB (ITU-T Standard) Return Loss ≥60 dB Lighting 2 powerful white LEDs Splicing Time SM FAST mode: 5 s Estimated Splice Loss Yes Protection Sleeve Length 0.787 in to 2.362 in (2 cm to 6 cm) Heating Mode Preset: 5 kinds [0.787 in, 1.181 in, 1.575 in, 1.969 in or 2.362 in (2 cm, 3 cm, 4 cm, 5 cm or 6 cm)]; Max: 100 modes Heating Time 11 s Results Storage 20,000 latest records & 200 images Tension Test Standard 0.45 lbf (2.0 N) Fiber View & Magnification X, Y, X/Y; 380x magnification Fiber Holder Multi-function, free disassembly fiber clamp Power Supply AC input: 100 V to 240 V; DC input: 12 V to 15 V Battery Capacity 7200 mAh Heating Times (per charge) Typical: above 320 times (splicing heating) Operating Methods Button or Touch screen Automatic Calibration Automatic ARC calibration by air pressure and temperature Electrode Life 5000 arcs Terminal USB 2.0, Mini USB VFL (Visual Fault Locator) Output power: 15 mW; Modes: CW & 2 Hz flashing Power Meter Calibrated wavelengths: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm; Range: -50 to 26 dBm; Absolute error: <0.3 dB (-50 dBm to 3 dBm) Operating Conditions Altitude: 0 ft to16,404 ft (0 m to 5000 m); Humidity: 0% RH to 95% RH; Temp: -4 °F to 122 °F (-20 °C to 50 °C); Max wind: 33.6 mph (15 m/s) Storage Conditions Humidity: 0% RH to 95% RH; Temp: -40 °F to 176 °F (-40 °C to 80 °C); Battery storage: -4 °F to 86 °F (-20 °C to 30 °C) Dimensions (W×L×H) 5.32 in × 8.11 in × 5.13 in (13.51 cm × 20.59 cm × 13.04 cm) Weight 4.41 lb (2 kg) (with battery)
