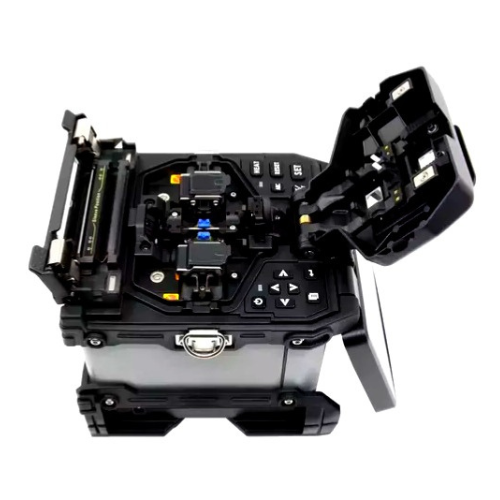

Auto Align Fusion Splicer with Anti Shock – GAOTek
$67.27
$97.54
Description Features 6 motors accurate real core to core alignment 5 inch high resolution color touch screen 6 seconds splicing and 18 seconds heating Automatic and real time ARC calibration Industrial quad core CPU with 30% power saving Anti shock, anti vibration, dustproof and waterproof Apply to 250 μm or 0.9 mm or 2.0 mm or 3.0mm fibers and SOC Technical Specifications Alignment Method 6 motors core to core Cladding 80 um to 150 um Return Loss > 60 dB Coating 160 um to 3000 um Splicing Program 40 groups Operating Mode Manual or auto Heating Time 18 s Storage 4000 groups Tension Test 1.8 N to 2.25 N Battery 5200 mAh Power Supply Input AC 100 V to 240, output : DV 11 V to 13.5 V Electrode Life More than 4000 Arc Altitude 0 m to 5000 m Humidity 0 % to 95 % Temperature 14 ℉ to 122 ℉ (-10 ℃ to 50 ℃) Size 6.14 in x 5.55 in x 6.14 in (15.6 cm x 14.1 cm x 15.6 cm) Weight 5.4 lbs (2.45 kg)
