Advanced MultiMode Fiber Fusion Splicer with PAS Core Alignment – GAOTek

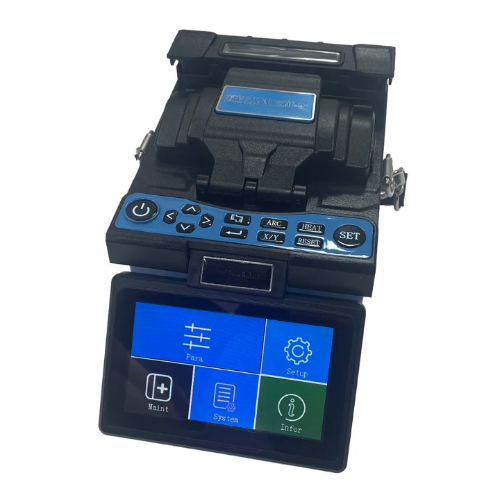

Description Overview GAOTek Small Size Fiber Optic Fusion Splicer Machine is the main product of our company. With smart appearance, reliable quality, SNP4108 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, and maintenance of fiber cable.   Features Support 9 languages, it’s simplified Chinese, traditional Chinese, English, Italian, French, Spanish, Portuguese, Russian and Indonesian language Used for FTTH and ordinary fiber project    Core to core alignment by PAS technology 8 sec splicing time and 30 sec heat time      300 X or Y view, 200 X and Y view 5-inch digital high-quality LCD screen, observe X and Y view at same time Three in one fixture, splicing single fiber, cable indoor and pig tail Applicable Fiber: bare fiber, 0.9 or 2.0- or 3.0-mm patch cord, drop cable Built in large capacity lithium battery of 200 times splicing and heating Small size and light weight, 4.63 lb (2.1 kg), including battery With dual heating groove (optional), it can heat 2pcs heat shrink sleeve for fiber optic fusion splice at the same time, it can reduce the heating time and greatly improve work efficiency   Technical Specifications Splicing Type SM, MM, DS, NZDS Splicing Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) Return Loss > 60 dB Splicing Mode Manual, Half Auto, auto Fiber Alignment Core to Core Alignment by PAS technology Applicable Fiber Cable indoor and 0.0098 in (0.25 mm), 0.035 in (0.9 mm) fiber, SC fast connector Splicing Time ≤ 9 s Heat Time ≤ 30s Cleaved Length 0.314 in to 0.629 in (8 mm to 16 mm) Fiber Image Or Magnification 300 or 200 View Display 5-inch digital high-quality LCD screen Tension Test Standard 2N (option) Heat Shrinkable Sleeve 2.36 in (60 mm), 1.57 in (40 mm) and serials heat Shrinkable Sleeve Battery Capacity 200 cycles splicing and heating, 3 hours charging time (splicing and charging at same time) Battery Life Cycling charge 300 to 500 times, easy to replace battery Electrodes Life 3000, easy to replace electrodes Power Source ≤ 20 W Interface USB Convenient data download and software update Construction Lighting Built in high brightness, wide range of lights, easy to operate at night Power Supply Built in lithium battery 5200 mAh 11.1 V; external adapter, input: AC 100 to 240 V, output: DC 13.5 V / 4.5 A Operating Condition 0 m to 5000 m above sea level,  Temperature: 14 °F to 140 °F (-10 to 60℃), Humidity: 0 to 95 % RH (No dew) Weight (Including Battery) 4.63 lb (2.1 kg) Dimension  5.31 in x 6.22 in x 6.10 in (135 mm x 158 mm x 155 mm)
