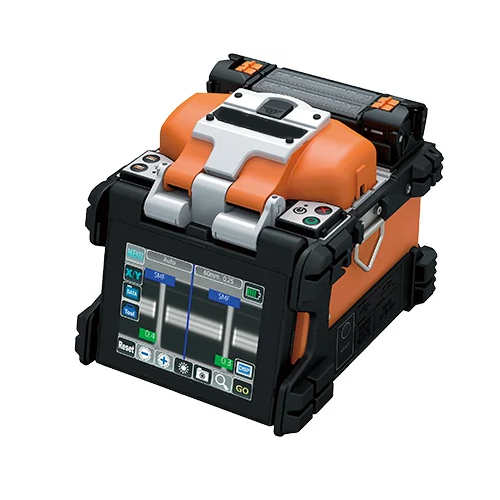

Advanced Fiber Fusion Splicer with Dual Camera & 100 Modes – GAOTek
$48.65
$86.6
Description Features Automated and programmable wind protector 7 sSplicing Time; 15 s automated tube heater Fully ruggedized for shock, dust, and moisture Li-Ion battery with 200 splices or shrinks per charge 19 in (5 mm) cleave length for splice on connector Sheath clamp or fiber holder operation On-board training and support videos Internet software upgrades Multi-function transit case with integrated workstation Technical Specifications Applicable Fiber’s Single mode (G.652 & G.657), Multimode (G.651), DS (G.653), EDF (G.657) BIF (ITU-TG657) Cladding Diameter 80 µm to 150 µm Coating Diameter 100 µm to 1,000 µm Fiber Cleave Length 0.19 in to 0.62 in (5 mm to 16 mm) Typical Average Splice Loss 0.02 dB with SM, 0.01 dB with MM, 0.04 dB with DS, 0.04 dB with NZDS, measured by cut-back method relevant to ITU-T and IEC standards Splicing Time SM FAST mode – 7 s; Stander mode -7.5 s Auto mode-8 s Splice Modes 100 pre-set and user programmable modes Splice Lost Estimate Based upon dual camera core alignment data Storage of Splice Result Last 2,000 results to be stored in the internal memory Fiber Display X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation Magnification X or Y: 320 X, X and Y: 200X Viewing Method Dual cameras with 4.73 in (12.01 cm) TFT colour LCD monitor Operating Method 0 mi to 3.10 mi (0 m to 5,000 m) above sea level, 0% to 95% RH and 14 °F to 122 °F (-10 °C to 50 °C) or Max wind velocity of 15 m/s Return Loss >60 dB Pull 1.96 N Electrode Life 3000 to 5000 or One pair for Standby application Weight 4.6 lb (2.1 kg)
