Adore Fiber Fusion with 7s Splicing Time & Fast Heating 25 s- GAOTek

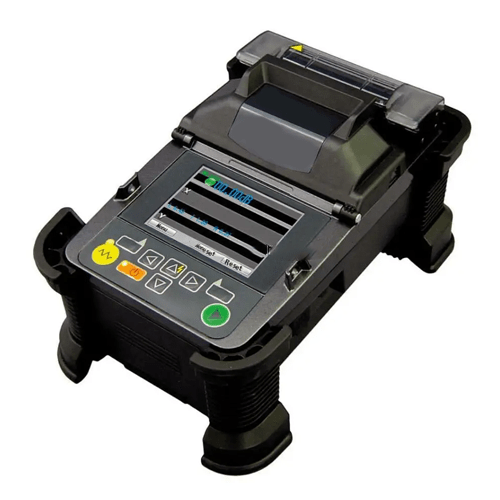

Description Overview GAOTek Fusion Adore Optical Fiber Fusion Splicer Hand-Held Core-Alignment Fusion Splicer has been enhanced and updated to version 2. The battery is automatically charged internally when connected to AC mains power even during operation. The new illumination lamp lights up a wide area around the V-grooves and helps operation in a low light environment. The redesigned and strengthened heater simplifies the protection sleeve loading process. This is fast and durable, it continues the FITEL tradition of quality and excellence by delivering precise and accurate splices even under rigorous field conditions.   Features Rugged and compact handheld design endure harsh environmental conditions Fast splice 7 s at super low loss and Fast Heating 25 s 200 cycles (Splicing & Heating) with new battery configuration Auto-start shrink sleeve oven feature Improved GUI to further enhance ease-of-use Technical Specifications Applicable Fibers SM, MM, DSF, NZD, EDF, BIF or UBIF (Bend-insensitive fiber) Cladding Diameter 80 nm to 150 nm Coating Diameter 160 nm to 900 nm Fibers Cleave Length 0.19 in x 0.62 in (5 mm x 16 mm) Average Splice Loss SM: 0.02 dB, MM: 0.01 dB, DSF: 0.04 dB, NZD: 0.04 dB Splice Time 7 s (semi-auto mode) 9 s (regular mode) Heat Time 25 s 1.5 in, 2.3 in (40 mm Sleeve, 60 mm Sleeve) (Pre-heat mode) 31 s 1.5 in, 2.3 in (40 mm Sleeve, 60 mm Sleeve) (regular mode) Splice Programs Max. 150 Automatic Splicing Selection SM: SM, DSF, NZD, BIF or UBIF, MM: MM Heat Programs Max. 18 Automatic Heating Start Available Applicable Sleeves 0.78 in x 1.5 in x 2.3 in (20 mm x 40 mm x 60 mm) Fiber Holding Tight holder (Loose tube applicable) or Fiber Holder System Tension Test 1.96 N Fiber Image Magnification 304 X, 608 X Splice Memory Max. 2,000 Image Capture Capacity Last 100 images to be automatically captured Up to 24 images to be stored permanently Monitor 3.5 in (8.89 cm) color LCD monitor Data Output USB ver.2.0 mini Displaying Language 20 languages (e.g., English, Spanish, Japanese, Chinese) Battery Capacity Typical 80 splice or heat cycles with the single battery Typical 200 splice or heat cycles with 2 batteries Altitude 5,000 MH Operating Temperature -14 °F to 122 °F (-10 ℃ to 50 ℃) (without excessive humidity) Storage Temperature  -40 °F to 140 °F (-40 ℃ to 60 ℃) (without excessive humidity) Power Source AC Input 100 V to 240 V (50 to 60 Hz), DC Input 11 V to 17 V Dimension 5 in x 7.8 in x 4.1 in (127W x 199D x 105H mm) (not including shock absorber) 6.2 in x 9.09 in x 5.11 in (159W x 231D x 130H mm) (including shock absorber) Weight 4.1 Ib (1.9 kg) (without battery) 5.07 Ib (2.3 kg) (with two batteries)
